TM57M5615

Data Sheet
DS-TM57M5610_15_EV093.pdf

2020/5/14
User manual

Development Tools
TICE59NB(已停產)
TICE99
TWR98/TWR99/TWR100/TWR100A

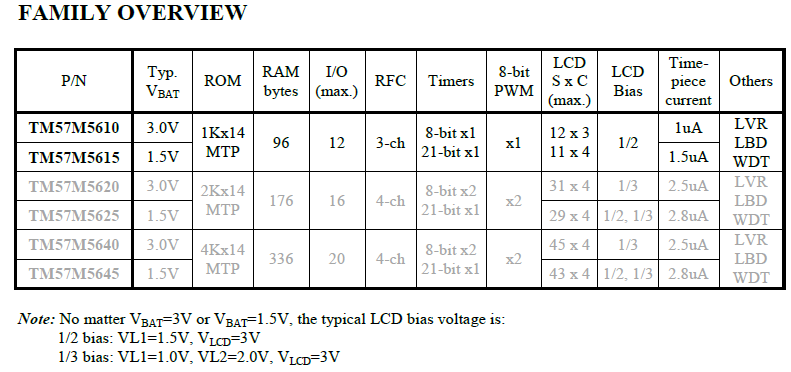

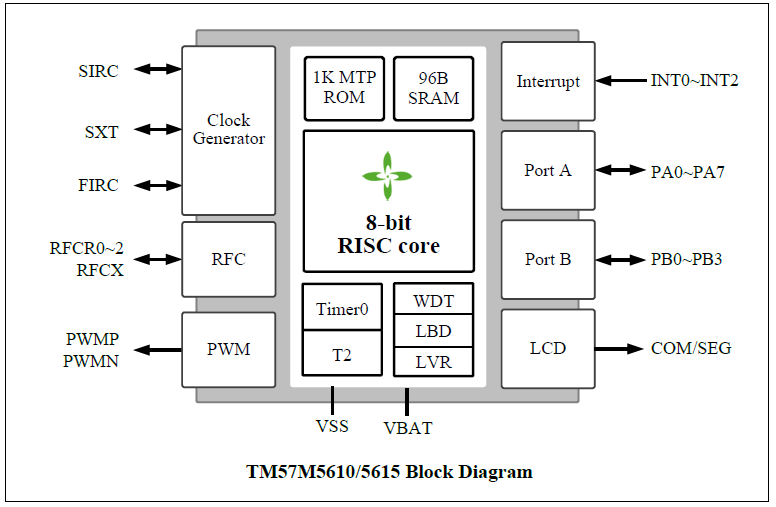

BLOCK DIAGRAM



FEATURES
1. Operating Voltage :
    . VBAT=LVR~3.6V (M5610)
    . VBAT=LVR~1.8V (M5615)
2. Timepiece Current (CPU Off, LCD On, 32K crystal oscillating) :
    . M5610: 5uA @VDD=3V, VBAT=3V, without power saving
    . M5610: 1uA @VDD=1.5V, VBAT=3V, with  power saving
    . M5615: 1.5uA @VDD=1.5V, VBAT=1.5V
3. Program ROM: 1K x 14 bits MTP (Multi Time Programmable ROM)
4. RAM: 96 x 8 bits
5. STACK: 5 Levels
6. I/O ports: Maximum 12 programmable I/O pins
    . Open-Drain Output
    . CMOS Push-Pull Output
    . Schmitt Trigger Input with pull-up resistor option
7. System Oscillation Sources (Fsys) :
    . Fast-clock
      - FIRC (Fast Internal RC) : 3.8MHz @VDD=3V; 1.3MHz @VDD=1.5V
    . Slow-clock
      - SIRC (Slow Internal RC) : 80KHz @VDD=3V; 40KHz @VDD=1.5V
      - SXT (Slow Crystal) : 32768 Hz
    . System Oscillation Sources can be divided by 1/2/4/8 as System Clock (Fsys)
    . Dual System Clock Switching between Fast-clock and Slow-clock
      - FIRC + SIRC
      - FIRC + SXT
8. Power Saving Operation Mode
    . FAST Mode: CPU running at Fast-clock
    . SLOW Mode: Fast-clock stop, CPU running at Slow-clock
    . IDLE Mode: Fast-clock and CPU stop; Slow-clock, Timer2 and LCD keep running
    . STOP Mode: All clocks stop
9. Resistance to Frequency Converter (RFC)
10. Two Independent Timers
    . Timer0 (TM0)
      - 8-bit timer with divided by 1~256 pre-scale option, reload/interrupt/stop function
      - Clock sources: Fsys or Slow-clock /16 (SIRC/SXT)
    . Timer2 (T2)
      - 21-bit timer with 4 interrupt time period options (60s/1s/0.5s/0.125s)
      - Clock sources: Fsys /128 or Slow-clock (SIRC/SXT)
      - IDLE mode wake-up, if clock source is Slow-clock
11. Interrupts
    . Three External Interrupt pins (INT0~INT2)
      - Rising or falling edge triggered interrupt
      - Wake-up CPU from IDLE/STOP mode
    . Timer0/Timer2 Interrupts
    . RFC overflow Interrupt
12. LCD Controller / Driver
    . 1/3 or 1/4 Duty
    . 4 COM x 11 SEG or 3 COM x 12 SEG
    . 1/2 LCD Bias voltage, typical VL1=1.5V and VLCD=3V
13. Watchdog Timer (WDT)
    . Clocked by built-in RC oscillator with 2 adjustable reset times
      - 0.8s/0.4s @VDD=3V
      - 1.6s/0.8s @VDD=1.5V
    . Watchdog timer is disabled in IDLE/STOP mode
14.  8-bit PWM for Buzzer / IR application
    . Adjustable Period & Clock Pre-scale
    . Clock source: Fast-clock or Slow-clock
15. Four types Reset
    . Power On Reset :M5610  (2V@25°C , 2.4V@-40°C) , M5615 (1.35V@25°C , 1.45V@0°C)
    . Watchdog Reset
    . Low Voltage Reset: M5610=1.7V, M5615=1.25V  (LVR can be disabled by LVROFF after power on)
    . External Pin Reset
16. Low Battery Detector (LBD) by BandGap Voltage Reference
    . M5610: Detect VBAT from 2.4V to 3.1V
    . M5615: Detect VBAT from 1.2V to 1.6V
17. Operating Temperature Range :
    . M5610:  40°C to + 85°C
    . M5615:  0°C to + 70°C
18. Package Type : SSOP28 / dice-form 
