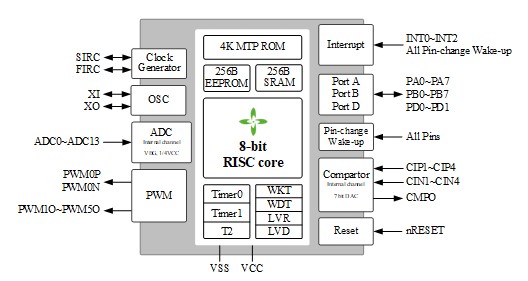

FEATURES1. ROM: 4K x 16 bits MTP
2. EEPROM: 256 x 8 bits
3. RAM: 256 x 8 bits
4. STACK: 8 Levels
5. System Clock type selections:
Fast clock from 1~20 MHz Crystal (FXT)
Fast clock from Internal RC (FIRC, 16 MHz)
Slow clock from 32768 Hz Crystal (SXT)
Slow clock from Internal RC (SIRC, 65.5 KHz@VCC=5V)
6. System Clock Prescaler:
System Clock can be divided by 1/2/4/8 option
7. Power Saving Operation Mode
FAST Mode: Slow-clock is enabled, Fast-clock keeps CPU running
SLOW Mode: Fast-clock can be disabled or enabled, Slow-clock keeps CPU running
IDLE Mode: Fast-clock and CPU stop. Slow-clock, T2, or Wake-up Timer keep running
STOP Mode: All clocks stop, T2 and Wake-up Timer stop
8. 3 Independent Timers
Timer0
- 8-bit timer divided by 1~256 pre-scale option / auto-reload / counter / interrupt / stop function
Timer1
- 8-bit timer divided by 1~256 pre-scale option / auto-reload / interrupt / stop function
- Overflow and Toggle out
T2
- 15-bit timer with 4 interrupt interval time options
- IDLE mode wake-up timer or used as one simple 15-bit time base
- Clock source: Slow-clock, Fsys/128, or FIRC/512 (16 MHz/512)
9. Interrupt
Three External Interrupt pins
- 1 pin is falling edge wake-up triggered & Interrupts
- 2 pins are rising or falling edge wake-up triggered & Interrupt
Timer0 / Timer1 / T2 / Wake-up Timer Interrupt
ADC Interrupt
Comparator Interrupt
PWM Interrupt
LVD Interrupt
All Port Pin Change Wakeup Interrupt
EEPROM Interrupt
10. Wake-up Timer (WKT)
Clocked by built-in RC oscillator with 4 adjustable interrupt times
- 15.6 ms / 31.3 ms / 62.5 ms / 125 ms @VCC=5V
11. Watchdog Timer (WDT)
Clocked by built-in RC oscillator with 4 adjustable reset times
- 125 ms / 250 ms / 1001 ms /2001 ms @VCC=5V
Watchdog timer can be disabled / enabled in STOP mode
12. Six 16 bits PWMs
Six individual duty-adjustable, shared period-adjustable
PWM clock source: System clock (Fsys), FIRC/256, FIRC (16 MHz), FIRC*2 (32 MHz)
PWM0 supports complementary output (PWM0P, PWM0N)
PWM0 output with non-overlap time durations adjustable: (0~15)*(PWMCLK)
PWM0N/0P/1/2/3/4/5 has two outputs
Half-bridge phase control output
13. 12-bit ADC with 14 channels for External Pin Input and 2 channels for Internal Voltage
Two internal voltage channels: VBG, 1/4VCC
ADC reference voltage: VCC, VBG (1.2V), VBG (2.48V) and VBG (2V)
PWM trigger ADC
14. Comparator
Comparator x 1
- With 7-bit DAC input
- DAC reference voltage: VCC or VBG (1.20V or 2.48V)
15. Reset Sources
Power On Reset
Watchdog Timer Reset
Low Voltage Reset
External Pin Reset
16. Low Voltage Reset (LVR) and Low Voltage Detection (LVD)
15-Level Low Voltage Reset: 1.73V ~ 3.5V, can be disabled
15-Level Low Voltage Detection: 1.73V ~ 3.5V, can be disabled
17. Operating Voltage
Fsys= 16 MHz, PWMCKS=FIRC*1, LVR~5.5V. Suggest LVR ≥ 2.30V
Fsys= 8 MHz, PWMCKS=FIRC*1, LVR~5.5V. Suggest LVR ≥ 1.6V
Note: Refer to the “Electrical Characteristics Graphs”.
18. Operating Temperature Range : -40°C to + 105°C
19. Table Read Instruction: 16-bit ROM data lookup table
20. Integrated 16-bit Cyclic Redundancy Check (CRC) function
21. Instruction set: 39 Instructions
22. I/O ports:
Maximum 18 programmable I/O pins
- Open-Drain Output
- CMOS Push-Pull Output
- Schmitt Trigger Input with pull-up / pull-down resistor option(PA7 has no pull-down resistor)
- All I/O with High-Sink except PA7
- 1/2 VCC (1/2 bias) Output (except PA7)
All pin change wake up (falling edge and rising edge trigger) and interrupt
23. Programming connectivity support 5-wire (ICP) or 6-wire program
24. RDCTL: Read signal delay control for Program ROM
The user must switch this register to “4ns” to enhance the performance of minimal operating voltage
25. Trimmed VBG1.2V/2V
The users could move BG2TRIM to BGTRIM for exact 2V VBG.
26. ATD: Automatic transient detection to enhance the performance of power consumption at slow mode
27. Package Types:
20-pin SOP (300 mil)
16-pin SOP (150 mil)
14-pin SOP (150 mil)
8-pin SOP (150 mil)
20-pin TSSOP (173 mil)
20-pin QFN(3x3x0.75-0.4 mm) (L=0.25 mm)
28. Supported EV board
TM56F1552/22
