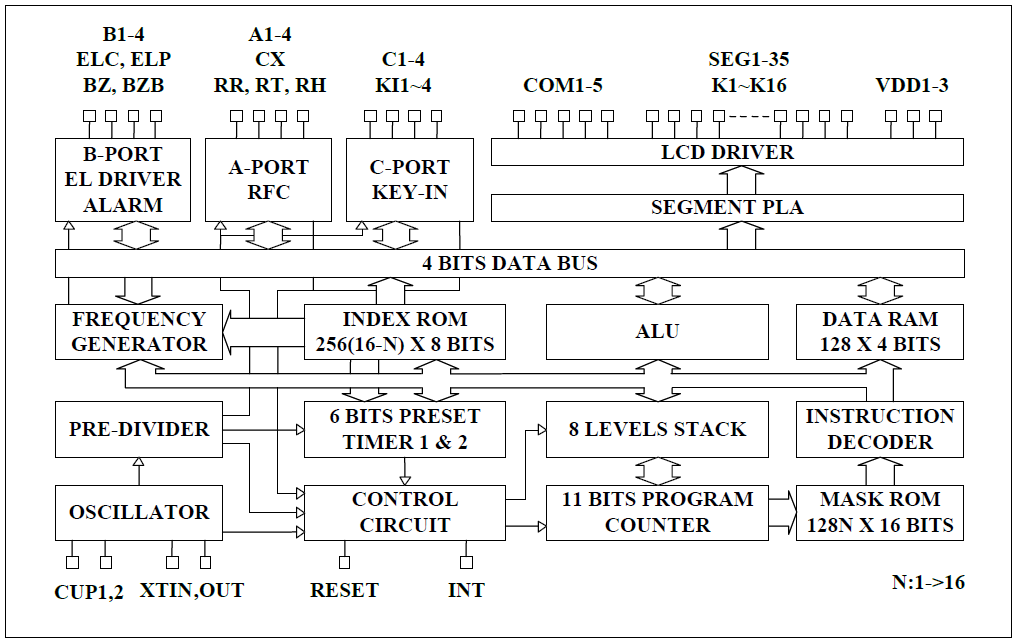

TM87ML22H/L

1.	Low power dissipation.
	1.5V/3V operating voltage range.
TM87ML22L	1.5V Power Mode
TM87ML22H	3V Power Mode


2.	Powerful instruction set.
	Binary addition, subtraction, BCD. BCD can be executed directly in addition, subtraction.
	Single-bit manipulation (set, reset, decision for branch).
	Various conditional branches.
	16 initial working registers and manipulators.
	Table look-up.
	LCD driver data transfer.
3.	ROM(MTP) capacity.				2K	x 16 bits.
	Instruction ROM Max. capacity	2K	x 16 bits.
	Table ROM Max. capacity		3840	x 8 bits.
	Endurance: 1000 cycles (min.)
4.	RAM capacity.					128	x 4bits.
5.	With direct/index addressing mode in data RAM access.
6.	LCD driver output.
	Max 175 LCD dots by 5 common outputs and 35 segment outputs.
	SEG24~35 can be defined as IOA1~4/CX, RR, RT, RH, IOB1~4/ELC, ELP, BZB, BZ,
IOC/KI1~4 by option.
	1/1~1/5 Duty can be selected by option.
	1/2 ~1/3 Bias can be selected by option.
	Single instruction to turn off all segments.
	COM1~5, SEG1~35 can be defined as CMOS or P_open drain type output by option(COM1 & SEG35  force same  PSTB & DBUS option for CMOS or P_open drain type output).
	Built-in regulator mode for VL1/2 by option.
7.	Input/output ports.
	Port IOA	4 pins (with internal pull-low), and can be defined as SEG24~27/CX,RR,RT,RH by option.
	Port IOB	4 pins (with internal pull-low), and can be defined as SEG28~31/ELC, ELP, BZB, BZ by option.
	Port IOC	4 pins (with internal pull-low, low-level-hold, input signal chattering prevention circuitry), and can be defined as SEG32~35/KI1~4 by option.
8.	Interrupt function.
	External factors	3 (INT pin, Port IOC & KI input).
	Internal factors	4 (Pre-Divider, Timer1, Timer2 & RFC).
9.	Built-in EL-light driver.
	ELC, ELP. Can be defined as SEG28, 29/IOB1, 2 by option.
10.	Built-in Alarm, clock or single tone melody generator.
	BZB, BZ. Can be defined as SEG30, 31/IOB3, 4 by option.
11.	Built-in resistance to frequency converter.
	CX, RR, RT, RH. Can be defined as SEG24~27/IOA1~4 by option.
12.	Built-in key matrix scanning function.
	KO1~KO16 (Shared with SEG1~16)
	KI1~KI4. Can be defined as SEG32~35/IOC1~4 by option.
13.	Two 6-bit programmable timers with programmable clock source.
	Read out the content in anytime
14.	Watchdog timer.
15.	Built-in voltage charge halver & pump circuit.
16.	Dual clock operation
	slow clock oscillation can be defined as X’tal or external RC type oscillator by option.
	fast clock oscillation can be defined as internal R or external R(Fast Only) type oscillator by option.
17.	HALT function.
18.	STOP function.
19.	Built-in Low Battery Detect.
20.	Built-in Low Voltage Reset.
