TM8793

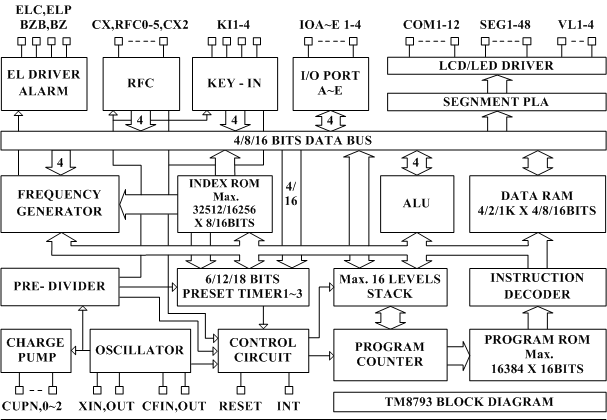

1. Low power dissipation.
    . 1.5V/3V/5V operating voltage range.
2. Powerful instruction set.
    . Binary addition, subtraction, BCD adjustment. BCD can be executed
       directly in addition, subtraction operation.
    . 4 bits x 4 bits Multiplier
    . Single-bit manipulation (set, reset, decision for branch).
    . Various conditional branches.
    . 16 initial working registers and manipulators. (can be extended to all
        RAM by Page Mode)
    . Table look-up.
    . LCD driver data transfer.
3. ROM  capacity.                           16K        x        16 bits.
    . Instructon ROM Max. cpacity           16K        x        16 bits.
    . Table ROM Max. capacity       32512/16256        x        8/16 bits.
4. RAM  capacity.                      4K/2K/1K        x        4/8/16 bits.
    . STACK Max. capacity                    16        x        16 bits.
    . HL/ZR store Max. capacity           16/16        x        16 bits.
5. With direct/index addressing mode in data RAM access.
6. LCD driver output.
    . Over 512 LCD dots by 12 common outputs and 48 segment outputs.
    . COM7~12 can be defined as SEG48~43 by option.
    . SEG24~47 can be defined as IO,EL,BZ,KI ports  by option.
    . 1/1~1/12 Duty can be selected by option.
    . 1/2 ~1/4 Bias can be selected by option.
    . Single instruction to turn off all segments.
    . COM5~12 can be defined as CMOS or P_open drain type output by option.
7. Input/output ports.
    . Port IOA 4 pins (with internal pull-low, input signal chattering
       prevention circuitry), and can be defined as SEG24~27/CX,RR,RT,RH by
       option, or can be defined as CX,RFC0~2 by option.
    . Port IOB 4 pins (with internal pull-low), and can be defined as
       SEG28~31/ELC,ELP.BZB.BZ by option.
    . Port IOC 4 pins (with internal pull-low, low-level-hold, input signal
       chattering prevention circuitry), and can be defined as SEG32~35/KI1~4
       by option.
    . Port IOD 4 pins (with internal pull-low, input signal chattering prevention
       circuitry), and can be defined as SEG36~39 by option.
    . Port IOE 4 pins (with internal pull-low), and can be defined as SEG40~43
       by option, or can be defined as RFC3~5,CX2 by option.
8. Interrupt function.
    . External factors  5 (INT pin, Port IOA, IOC, IOD & KI input).
    . Internal factors   5 (Pre-Divider, Timer1, Timer2, Timer3 & RFC).
9. Built-in EL-light driver.
    . ELC, ELP. Can be defined as SEG28,29 by option, or can be defined as
      SEG44,45 by option.
10. Built-in Alarm, clock or single tone melody generator.
    . BZB, BZ. Can be defined as SEG30,31 by option, or can be defined as
      SEG46,47 by option.
11. Built-in resistance to frequency converter.
    . CX,RR,RT,RH. Can be defined as SEG24~27/IOA1~4 by option.
    . CX,RFC0~5,CX2. Can be defined as IOA1~4,IOE1~4 by option.
12. Built-in key matrix scanning function.
    . KO1~KO16(Shared with SEG1~16)
    . KI1~KI4. Can be defined as SEG32~35/IOC1~4 by option.
13. Three 6-bit programmable timer with programmable clock source.
    . Read out the content in anytime
    . Merged 2 or 3 timers as 12-bit or 18-bit timer
    . Used as counter for RFC
14. Watchdog timer.
15. Built-in voltage charge halver & pump circuit for Charge Pump type &
       1/nVBAT ~ (n-1) /nVBAT (n=3,4 for 1/3,1/4Bias) for Capacitive Voltage
       Divider type
16. Dual clock operation
    . slow clock oscillation can be defined as X’tal or external RC type oscillator by option.
    . fast clock oscillation can be defined as 3.58MHz ceramic resonator, internal R or
external  R type oscillator by option.
17. HALT function.
18. STOP function.

Timer / Calendar / Calculator / Thermometer
