TR9001

Data Sheet
DS-TR9001_EV12.pdf

8/22/2016
User manual

GENERAL DESCRIPTION
The TR9001 is a CMOS quad micro power operational amplifier.
This cost-effective device is suitable for high gain, low frequency,
and low power applications, especially ideal for battery powered
systems where μA range of standby current is essential for long
battery life span. It also provides high performance operation
at low supply voltages, and is ideal as a low power line signal
monitor/detector, and alarm systems in car.

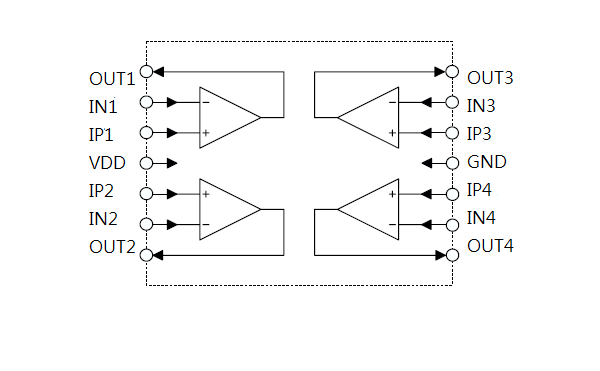

BLOCK DIAGRAM


FEATURES
1.Quad micro power op amp
2.Wide range of supply voltage: 1.6V~5.5V
3.High input impedance
4.Single supply operation
5.Low current consumption:  <5 μA per amp
6.Rail to rail output
7.Provides both sink and source output drive capability
8.Pin compatible with LM324 (14-pin DIP)
9.14-pin DIP/SOP package
APPLICATION
1.Battery powered system
2.Sensor amplifier
3.Low power gain blocks
4.Low power comparators
5.Signal detectors
6.Car alarm systems
