GENERAL DESCRIPTION
The TM8959 is an embedded high-performance 4-bit microcontroller with
LCD driver on a chip. It contains all the necessary functions, such as
4-bit parallel processing ALU, ROM, RAM, I/O ports, timer, clock
generator, dual clock operation, Resistance to Frequency Converter(RFC),
EL panel driver, LCD driver, look-up table, watchdog timer
and key matrix scanning circuitry etc. on a signal chip.

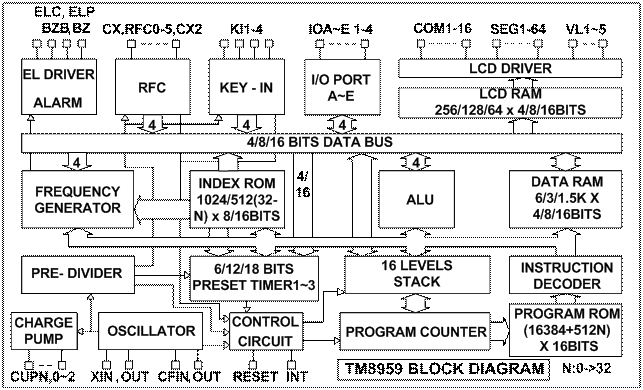

BLOCK DIAGRAM


FEATURES
1.	Low power dissipation.
	  1.5V/3V operating voltage range.
2.	Powerful instruction set.
	  Binary addition, subtraction, BCD adjustment. BCD can be performed directly in addition/ subtraction operations.
	  4 bits x 4 bits Multiplier
	  Single-bit manipulation (set, reset, decision for branch).
	  Various conditional branches.
	  16 initial working registers and manipulators. (can be extended to all RAM with Page Mode)
	  Look-up Table.
	  LCD driver data transfer.
3.	ROM Capacity.				32K		x    16 bits.
	  Instruction ROM Max. Capacity	32K		x    16 bits.
	  Table ROM Max. Capacity		32K / 16K	x    8 / 16 bits.
4.	RAM Capacity.				6K / 3K / 1.5K  x    4 / 8 / 16 bits.
	  LCD Max. Capacity			256 / 128 / 64  x    4 / 8 / 16 bits.
	  STACK Max. Capacity		16	            x    16 bits.
	  HL/ZR store Max. Capacity		16 / 16	            x    16 bits.
5.	With direct/index addressing mode in data RAM access.
6.	LCD driver output.
	  16common outputs and 64 segment outputs.
	  1/4 ~ 1/16 Duty can be selected by mask option.
	  1/3 ~ 1/5 Bias can be selected by mask option.
	  Single instruction to turn off all segments.
	  COM5 ~ 16 can be defined as CMOS or P_open drain type output port by mask option.
	  External regulator mode for VL1/2 by mask option.
7.	Input/output ports.
	  Port IOA	4 pins (with internal pull-low, input signal chattering prevention circuitry).
	  Port IOB	4 pins (with internal pull-low), and can be defined as KI1 ~ 4 by mask option.
	  Port IOC	4 pins (with internal pull-low, low-level-hold, input signal chattering prevention circuitry).
	  Port IOD	4 pins (with internal pull-low, input signal chattering prevention circuitry)
	  Port IOE	4 pins (with internal pull-low).
8.	Interrupt function.
	  External factors	5	(INT pin, Port IOA, IOC, IOD & KI input).
	  Internal factors	5	(Pre-Divider, Timer1, Timer2, Timer3 & RFC).
9.	Built-in EL-light driver.
	  ELC, ELP
10.	Built-in Alarm, clock or single tone melody generator.
	  BZB, BZ
11.	Built-in resistance to frequency converter.
	  CX, CX2, RFC0 ~ 5
12.	Built-in key matrix scanning function.
	  KO1 ~ KO16 (Shared with SEG1 ~ 16)
	  KI1 ~ KI4 (Can be defined as IOB1 ~ 4 by mask option)
13.	Three 6-bit programmable timer with programmable clock source.
	  Read the content at any time
	  Merge 2 or 3 timers into one 12-bit or 18-bit timer.
	  Used as a counter for RFC
14.	Watchdog timer.
15.	Built-in voltage charge halver & pump circuit.
16.	Dual clock operation
	  Slow clock oscillation can be defined as X’tal or external RC type oscillator by mask option.
	  Fast clock oscillation can be defined as 3.58MHz ceramic resonator, internal R or external R type oscillator by mask option.
17.	HALT function.
18.	STOP function.
APPLICATION
Timer / Calendar / Calculator / Thermometer
