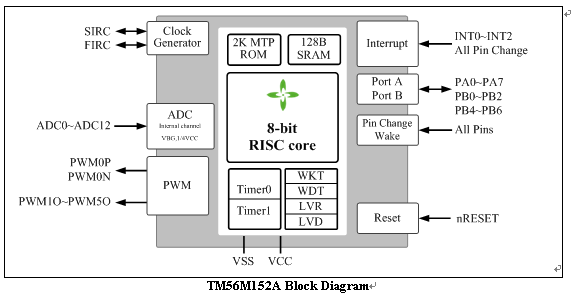

FEATURES1. ROM: 2K x 16 bits MTP(TM56M152A)
2. RAM: 128 x 8 bits
3. STACK: 8 Levels
4. System Clock type selections:
Fast clock from Internal RC (FIRC, 16 MHz)
Slow clock from Internal RC (SIRC, 93 KHz@VCC=5V)
5. System Clock Prescaler:
System Clock can be divided by 1/2/4/8 option
6. Power Saving Operation Mode
FAST Mode: Slow-clock is enabled, Fast-clock keeps CPU running
SLOW Mode: Fast-clock can be disabled or enabled, Slow-clock keeps CPU running
IDLE Mode: Fast-clock and CPU stop. Slow-clock or Wake-up Timer keep running
STOP Mode: All clocks stop, Wake-up Timer stop
7. 2 Independent Timers
Timer0
- 8-bit timer divided by 1~256 pre-scale option / auto-reload / counter / interrupt / stop function
Timer1
- 8-bit timer divided by 1~256 pre-scale option / auto-reload / interrupt / stop function
- Overflow and Toggle out
8. Interrupt
Three External Interrupt pins
- 1 pin is falling edge wake-up triggered & Interrupts
- 2 pins are rising or falling edge wake-up triggered & Interrupt
Timer0 / Timer1 / Wake-up Timer Interrupt
ADC Interrupt
PWM Interrupt
LVD Interrupt
All Port Pin Change Wakeup Interrupts
9. Wake-up Timer (WKT)
Clocked by built-in RC oscillator with 4 adjustable interrupt times
- 11 ms / 23 ms / 46 ms / 91 ms @VCC=5V
10. Watchdog Timer (WDT)
Clocked by built-in RC oscillator with 4 adjustable reset times
- 91 ms / 183 ms / 732 ms / 1463 ms @VCC=5V
Watchdog timer can be disabled / enabled in STOP mode
11. Six 16 bits PWMs
Six individual duty-adjustable, shared period-adjustable
PWM clock source: System clock (Fsys), FIRC/256, FIRC (16 MHz), FIRC*2 (32 MHz)
PWM0 supports complementary output (PWM0P, PWM0N)
PWM0 output with non-overlap time durations adjustable: (0~15)*(PWMCLK)
PWM0N/0P/1/2/3/5 has only one output
12. 12-bit ADC with 13 channels for External Pin Input and 2 channels for Internal Voltage
Two internal voltage channels: VBG, 1/4VCC
ADC reference voltage: VCC, VBG (1.2V), VBG (2.48V) and VBG (2V)
13. Reset Sources
Power On Reset
Watchdog Timer Reset
Low Voltage Reset
External Pin Reset
14. Low Voltage Reset (LVR) and Low Voltage Detection (LVD)
16-Level Low Voltage Reset: 1.6V ~ 3.5V, can be disabled
15-Level Low Voltage Detection: 1.73V ~ 3.5V, can be disabled
15. Operating Voltage
Fsys= 16 MHz, LVR~5.5V. Suggest LVR ≥ 2.30V
Fsys= 8 MHz, PWMCKS=FIRC*1, LVR~5.5V. Suggest LVR ≥ 1.55V
Note: Refer to the “Electrical Characteristics Graphs”.
16. Operating Temperature Range : -40°C to + 105°C
17. Table Read Instruction: 16-bit ROM data lookup table
18. Integrated 16-bit Cyclic Redundancy Check (CRC) function
19. Instruction set: 39 Instructions
20. I/O ports:
Maximum 14 programmable I/O pins
- Open-Drain Output
- CMOS Push-Pull Output
- Schmitt Trigger Input with pull-up resistor option
- All I/O with High-Sink except PA7
All pin change wake up (falling edge and rising edge trigger) and interrupt
21. Programming connectivity support 5-wire (ICP) or 7-wire program
22. RDCTL: Read signal delay control for Program ROM
4ns is suggested.
23. Trimmed VBG1.2V/2V
The users could move BG2TRIM to BGTRIM for exact 2V VBG.
24. ATD: Automatic transient detection
25. Package Types:
16-pin SOP (150 mil)
14-pin SOP (150 mil)
10-pin MSOP (118 mil)
8-pin SOP (150 mil)
16-pin QFN (3*3*0.75 - 0.5mm)
10-pin DFN (3*3*0.75 - 0.5mm)
26. Supported EV board
TM56F1552/22
