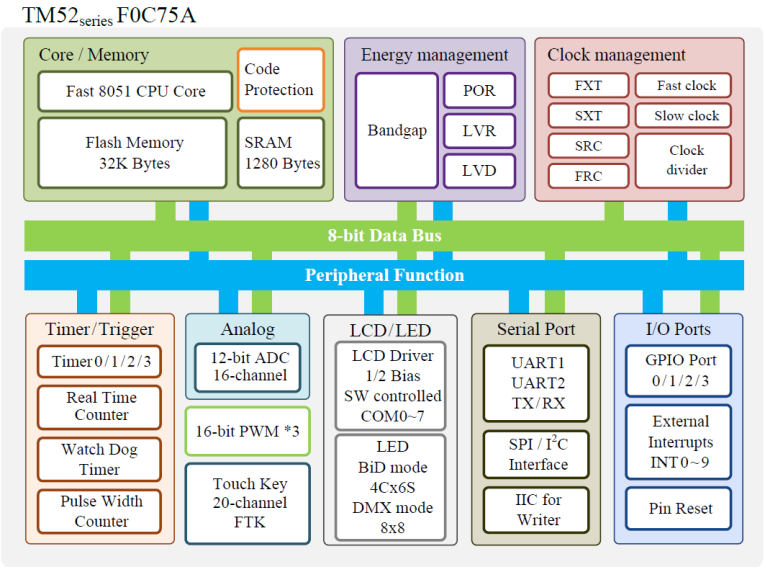

TM52eF0C75A

1. Standard 8051 Instruction set, fast machine cycle
 Executes instructions six times faster than the standard 8051.
2. Flash Program Memory
 32K Bytes
 Support IAP “In Application Programming” (EEPROM like)
 Code Protection Capability
 10K erase times at least
 10 years data retention at least
3. Total 1280 Bytes SRAM (IRAM + XRAM)
 256 Bytes IRAM in the 8051 internal data memory area
 1024 Bytes XRAM in the 8051 external data memory area (accessed by MOVX Instruction)
4. Four System Clock type selections
 Fast clock from 1~18MHz Crystal (FXT)
 Fast clock from Internal RC (FRC, 18.432 MHz)
 Slow clock from 32768Hz Crystal (SXT)
 Slow clock from Internal RC (SRC,80 KHz)
 System Clock can be divided by 1/2/4/16 option
5. 8051 Standard Timer – Timer0/1/2
 16-bit Timer0, also supports T0O clock output for Buzzer application
 16-bit Timer1
 16-bit Timer2, also supports T2O clock output for Buzzer application
6. 15-bit Timer3
 Clock source is Slow clock
 Interrupt period can be clock divided by 32768/16384/8192/128 option
7. UARTs
 UART1, 8051 standard UART
 UART2, the second UART, supports only mode1 and mode3
8. Three independent 16 bits PWMs with period-adjustment
 With PWM0/PWM1/PWM2 Interrupt
9. SPI Interface
 Master or Slave mode selectable
 Programmable transmit bit rate
 Serial clock phase and polarity options
 MSB-first or LSB-first selectable
10. I2C interface (Master / Slave)
11. 20-Channel Touch Key (FTK)
 Internal rFerence key
 With 4 scanning methods
12. 12-bit ADC with 13 channels External Pin Input and 3 channels Internal RFerence Voltage
 Internal RFerence Voltage: VBG 1.22V @VCC=5V~3V, 25℃
 Internal RFerence Voltage: 1/4VCC
 ADC rFerence voltage = 2.5V / VCC
13. LCD Driver
 1/8 duty
 Software controlled COM0~7
 1/2 LCD Bias
14. LED Controller/Driver
 COM with Dead Time
 LED hold option
 Brightness uniform / enhancement option
【Bi-Direction matrix (BiD) mode】
 4C x 6S, Max. 10 pins up to 48 dots
 3groups, 8-level Brightness
【Dot matrix (DMX) mode】
 8C x 8S, Max. 9 pins up to 64 dots
 8-level Brightness
15. 14 Sources, 4-level priority Interrupt
 Timer0/Timer1/Timer2/Timer3 Interrupt
 INT0~INT1 pin low level or falling edge Interrupt
 INT2~INT9 pin Falling-Edge Interrupt
 Port1 Pin Change Interrupt
 UART1/UART2 TX/RX Interrupt
 ADC/Touch Key Interrupt
 SPI Interrupt
 I2C interrupt
 PWM0/PWM1/PWM2 interrupt
16. Pin Interrupt can Wake up CPU from Power-Down (Halt/Stop) mode
 INT0~INT9 Interrupt & Wake-up
 Each Port1 pin can be dFined as Interrupt & Wake-up pin (by pin change)
Note: Chip cannot enter Halt/Stop Mode if INTn pin is low and wakeup is enabled. (INTn=0 and EXn=1, n=0~9)
17. Max. 26 Programmable I/O pins
 CMOS Output
 Pseudo-Open-Drain, or Open-Drain Output
 Schmitt Trigger Input
 Pin Pull-up can be Enabled or Disabled
 All pin with High sink (80mA@VCC=5V，VOL=0.1VCC)
18. Independent RC Oscillating Watch Dog Timer
 400ms/200ms/100ms/50ms selectable WDT timeout options
19. Five types Reset
 Power on Reset
 Selectable External Pin Reset
 Selectable Watch Dog Reset
 Software Command Reset
 Selectable Low Voltage Reset
20. 16-level Low Voltage Detect
 4.3V/4.2V/4.0V/3.9V/3.8V/3.7V/3.6V/3.4V/
3.3V/3.2V/3.1V/3.0V/2.8V/2.7V/2.6V/2.5V
21. 8-level Low Voltage Reset
 4.2V/3.9V/3.7V/3.4V/3.2V/3.0V/2.7V/2.5V
22. Five Power Operation Modes
 Fast/Slow/Idle/Halt/Stop mode
23. Integrated 16-bit Cyclic Redundancy Check function
24. Multiplication and division
 8 bit Multiplier & Divider (standard 8051)
 16 bits Multiplier & Divider
 32 bits ÷ 16 bits hardware Divider
25. On-chip Debug/ICE interface
 Use P3.0/P3.1 pin or P0.0/P0.1 pin
 Share with ICP programming pin
