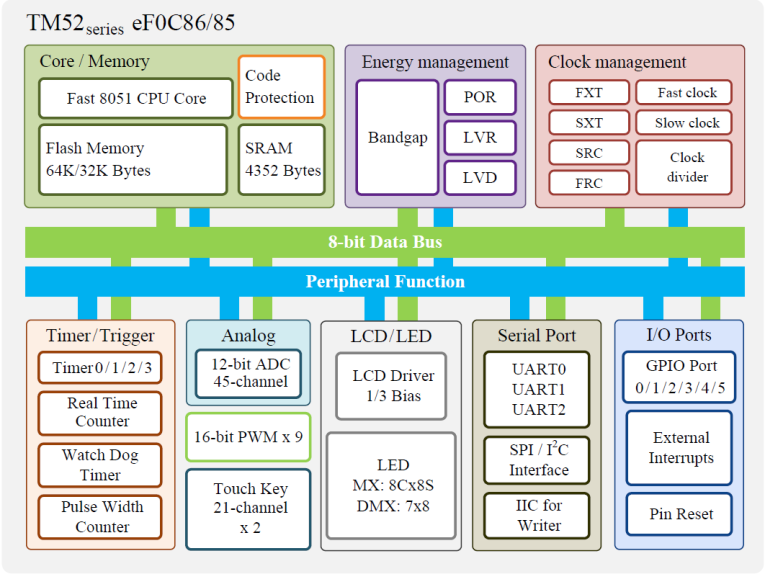

TM52eF0C86

1. Standard 8051 Instruction set, fast machine cycle
 Executes instructions six times faster than the standard 8051.
2. Flash Program Memory
 64K Bytes (TM52eF0C86)
 32K Bytes (TM52eF0C85)
 Support IAP “In Application Programming”
 Code Protection Capability
 100K erase times at least
 10 years data retention at least
3. Total 4352 Bytes SRAM (IRAM + XRAM)
 256 Bytes IRAM in the 8051 internal data memory area
 4096 Bytes XRAM in the 8051 external data memory area (accessed by MOVX Instruction)
4. Four System Clock type selections
 Fast clock from 1~16MHz Crystal (FXT)
 Fast clock from Internal RC (FRC, 18.432 MHz)
 Slow clock from 32768Hz Crystal (SXT)
 Slow clock from Internal RC (SRC,80 KHz)
 System Clock can be divided by 1/2/4/16 option
5. 8051 Standard Timer – Timer0/1/2
 16-bit Timer0, also supports T0O clock output for Buzzer application
 16-bit Timer1
 16-bit Timer2, also supports T2O clock output for Buzzer application
6. 15-bit Timer3
 Clock source can be selected as slow clock, FRC/512, slow clock/2 or FRC/1024
 Interrupt period can be clock divided by 65536/16384/4096/1024 option
7. UARTs
 UART0, 8051 standard UART
 UART1, supports only mode1 and mode3
 UART2, supports only mode1 and mode3
8. Nine 16 bits PWMs with period-adjustment
 Three 16 bits PWMs with independent period-adjustment (PWM0~PWM2)
 Six 16 bits PWMs with sharing period-adjustment (PWM30~PWM35)
 PWM2 with dead zone control
9. SPI Interface
 Master or Slave mode selectable
 Programmable transmit bit rate
 Serial clock phase and polarity options
 MSB-first or LSB-first selectable
10. I2C interface (Master / Slave)
11. 2 group of 21-Channel Touch Key (FTK)
12. 12-bit ADC with 42 channels External Pin Input and 2 channels Internal Reference Voltage
 Internal Reference Voltage: VBG 1.22V @VCC=5V~3V, 25℃
 Internal Reference Voltage: 1/4VCC
13. LCD Driver
 4x20 ~ 8x16 LCD driver
 1/3 LCD Bias
14. LED Controller/Driver
 Matrix mode (MX): 8*8, 16 pins up to 64 dots
 Dot matrix mode (DMX): 7*8、6*7、5*6、4*5, 8 pins up to 56 dots
15. 14 Sources, 4-level priority Interrupt
 Timer0/Timer1/Timer2/Timer3 Interrupt
 INT0~INT1 pin low level or falling edge Interrupt
 Port0/1/2/3/4/5 Pin Change Interrupt
 UART0/UART1/UART2 TX/RX Interrupt
 ADC/Touch Key Interrupt
 SPI Interrupt
 I2C interrupt
 PWM0/PWM1/PWM2/PWM3 interrupt
16. Pin Interrupt can Wake up CPU from Power-Down (Stop/Halt) mode
 Each pin can be defined as Interrupt & Wake-up pin (by pin change)
17. Max. 42 Programmable I/O pins
 CMOS Output
 Pseudo-Open-Drain, or Open-Drain Output
 Schmitt Trigger Input
 Pin Pull-up can be Enabled or Disabled
 All pin with High sink (60mA@VCC=5V，VOL=0.1VCC)
 COM pins have high sink current in LED mode (120mA@VCC=5V，VOL=0.1VCC)
18. Independent RC Oscillating Watch Dog Timer
 400ms/200ms/100ms/50ms selectable WDT timeout options
19. Five types Reset
 Power on Reset
 Selectable External Pin Reset
 Selectable Watch Dog Reset
 Software Command Reset
 Selectable Low Voltage Reset
20. 16-level Low Voltage Detect
 4.38V/4.3V/4.14V/4.06V/3.9V/3.82V/3.66V/3.58V/
3.42V/3.34V/3.18V/3.1V/2.94V/2.86V/2.7V/2.62V
21. 8-level Low Voltage Reset
 3.92V/3.68V/3.44V/3.20V/2.96V/2.72V/2.48V/2.24V
22. Five Power Operation Modes
 Fast/Slow/Idle/Stop/Halt mode
23. Integrated 16-bit Cyclic Redundancy Check function
24. Multiplication and division
 8 bit Multiplier & Divider (standard 8051)
 16 bits Multiplier & Divider
 32 bits ÷ 16 bits hardware Divider
25. On-chip Debug/ICE interface
 Use P3.0/P3.1, P3.4/P3.5, or P0.2/P0.3 pin
 Share with ICP programming pin
26. Writer interface
 Use P3.0/P3.1
27. Operating Voltage and Current
 VCC =2.3V ~ 5.5V @FSYSCLK=18.432MHz
 Icc<10uA @Vcc=3V, Halt mode, LCD On, 0.5S wakeup (timepiece current)
 ICC =11μA @Stop mode, VCC=5V
 ICC =4μA @Stop mode, VCC=3V
 ICC =180μA @Idle mode, VCC=5V
28. Operating Temperature Range
 –40°C ~ +105°C
29. Package Types
 44-pin LQFP
 SOP-28
