FEATURES1. One Key Touch Detector
2. Operation Voltage: 2.1V~5.5V
3. Operation Current: Normal mode =3.7uA / Low Power mode=2.7uA @VDD=3V
4. Enter Low Power mode after no activity for 10 second
5. Response Time: Normal mode < 60mS; Low Power mode < 120mS

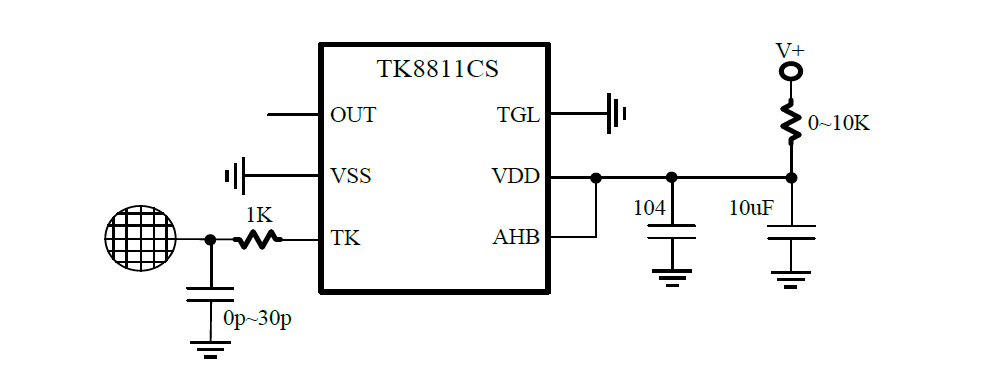

6. Sensitivity adjusted by TK pin capacitor (0pF~30pF)
7. Selectable output level: Active High or Active Low
8. Selectable output mode: Toggle or Direct mode
9. Key press timeout reset: 8 second
10. LVR=2.0V
11. SOT23-6 / DFN-6 package
