TM52F1363

Data Sheet
DS-TM52F1363_EV092.pdf

7/5/2022
User manual

Development Tools
T-Link-EV Board
TWR98/TWR99/TWR100/TWR100A

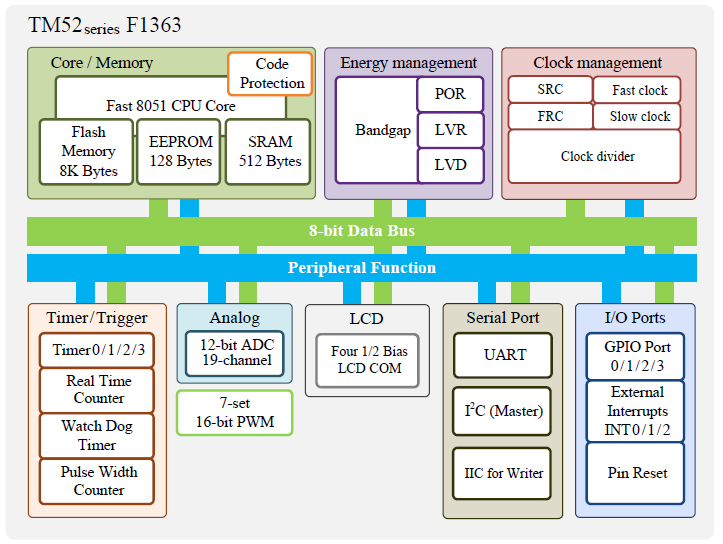

BLOCK DIAGRAM


FEATURES
1.	Standard 8051 Instruction set, fast machine cycle
	Executes instructions six times faster than the standard 8051.
2.	Flash Program Memory
	8K Bytes
	Support “In Circuit Programming” (ICP) or “In System Programming” (ISP) for the Flash code
	Byte Write “In Application Programming” (IAP) mode is convenient as Data EEPROM access
	Code Protection Capability
	10K erase times at least
	10 years data retention at least
*Each IAP address can be programmed more than 10000 times (typical value) .If the customer needs more programming times, a ROM area can be planned to disperse the address written by IAP data. Our company can provide the source code of this usage method.
3.	128 Bytes EEPROM Memory
	30K~50K erase times at least
	10 years data retention at least
4.	Total 512 Bytes SRAM (IRAM + XRAM)
	256 Bytes IRAM in the 8051 internal data memory area
	256 Bytes XRAM in the 8051 external data memory area (accessed by MOVX Instruction)
5.	Two System Clock type selections
	Fast clock from Internal RC (FRC, 16.588 MHz)
	Slow clock from Internal RC (SRC, 80 KHz)
	System Clock can be divided by 1/2/4/16 option
6.	8051 Standard Timer – Timer0/1/2
	16-bit Timer0, also supports T0O clock output for Buzzer application
	16-bit Timer1, also supports T1O clock output for Buzzer application
	16-bit Timer2, also supports T2O clock output for Buzzer application
7.	15-bit Timer3
	Clock source is Slow clock
	Interrupt period can be clock divided by 32768/16384/8192/65536 option
8.	One UART
	 8051 standard UART, One Wire UART option can be used for ISP or other application
*Support one UART, pin select to P30/P31 or P02/P16 by TXRXSEL (SFR 93h.7)
 
9.	Seven "16" bits PWMs with prescaler/ period-adjustment
10.	One Master I2C interface (MIIC)
*Support one MIIC, pin select to P35/P16 by MSDASEL (SFR B7h.7) , pin select to P13/P02 by MSCLSEL (SFR B7h.6)
11.	 12-bit ADC with 19 channels External Pin Input and 3 channels Internal Reference Voltage
	Internal Reference Voltage (VBG): 1.22V±1.5% @VCC=2.5V~5.5V, 25℃
	Internal Reference Voltage: VSS (0V)
	Internal Reference Voltage: VCC/4
	ADC reference voltage selection option: VCC / 2.5V
12.	LCD Driver
	Software controlled COM0~3
	1/2 LCD Bias
13.	13 Sources, 4-level priority Interrupt
	Timer0/Timer1/Timer2/Timer3 Interrupt
	INT0/INT1 pin Falling-Edge/Low-Level Interrupt
	INT2 pin Falling-Edge Interrupt
	Port0/1/2/3 Pin Change Interrupt
	UART TX/RX Interrupt
	ADC Interrupt
	Master I2C (MIIC) interrupt
	LVD Interrupt
	PWM0/PWM1 interrupt
14.	Pin Interrupt can Wake up CPU from Power-Down (Halt/Stop) mode
	INT0~INT2  Interrupt & Wake-up
	Each Port0/1/2/3 pin can be defined as Interrupt & Wake-up pin (by pin change)
15.	Max. 26 Programmable I/O pins
	CMOS Output
	Pseudo-Open-Drain, or Open-Drain Output
	Schmitt Trigger Input
	Pin Pull-up can be Enabled or Disabled
16.	Independent RC Oscillating Watch Dog Timer
	400ms/200ms/100ms/50ms selectable WDT timeout options
 
17.	Five types Reset
	Power on Reset
	Selectable External Pin Reset
	Selectable Watch Dog Reset
	Software Command Reset
	Selectable Low Voltage Reset
18.	16-level Low Voltage Reset
	2.25V / 2.40V / 2.55V / 2.70V / 2.80V / 2.95V / 3.10V / 3.25V / 3.40V / 3.55V / 3.70V / 3.85V / 4.0V / 4.15V / 4.30V / 4.45V
19.	15-level Low Voltage Detect
	2.40V / 2.55V / 2.70V / 2.80V / 2.95V / 3.10V / 3.25V / 3.40V / 3.55V / 3.70V / 3.85V / 4.0V / 4.15V / 4.30V / 4.45V
20.	Five Power Operation Modes
	Fast/Slow/Idle/Halt/Stop mode
21.	Integrated 16-bit Cyclic Redundancy Check function
22.	Multiplication and division
	8 bits Multiplier & Divider (standard 8051)
	16 bits Multiplier & Divider
	32 bits ÷ 16 bits Divider
23.	On-chip Debug/ICE interface
	Use P3.0/P3.1 pin or P2.0/P2.1 pin
	Share with ICP programming pin
	Mass production writer only supports P3.0/P3.1
24.	Operating Voltage and Current
	VCC =2.2V ~ 5.5V @FSYS=16.588 MHz
	ICC =0.1µA @Stop mode, PWRSAV=1, VCC=3V
	ICC =6µA @Halt mode, PWRSAV=1, VCC=3V
	ICC =9µA @Idle mode, PWRSAV=1, LVRPD=0x37, VCC=3V
25.	Operating Temperature Range
	–40°C ~ +105°C
26.	Package Types
	10-pin MSOP (118 mil)
	16-pin SOP (150 mil)
	20-pin TSSOP (173 mil)
	20-pin SOP (300 mil)
	20-pin QFN (3x3x0.75-0.4mm) (L=0.25mm)
	24-pin SSOP (150 mil)
	28-pin SOP (300 mil)
	28-pin SSOP (150 mil)
	28-pin QFN (4x4x0.75-0.4mm)
 
