TM52F1376

Data Sheet
DS-TM52F1376_78_EV097.pdf

7/26/2022
User manual

Development Tools
T-Link-EV Board
TWR98/TWR99/TWR100/TWR100A

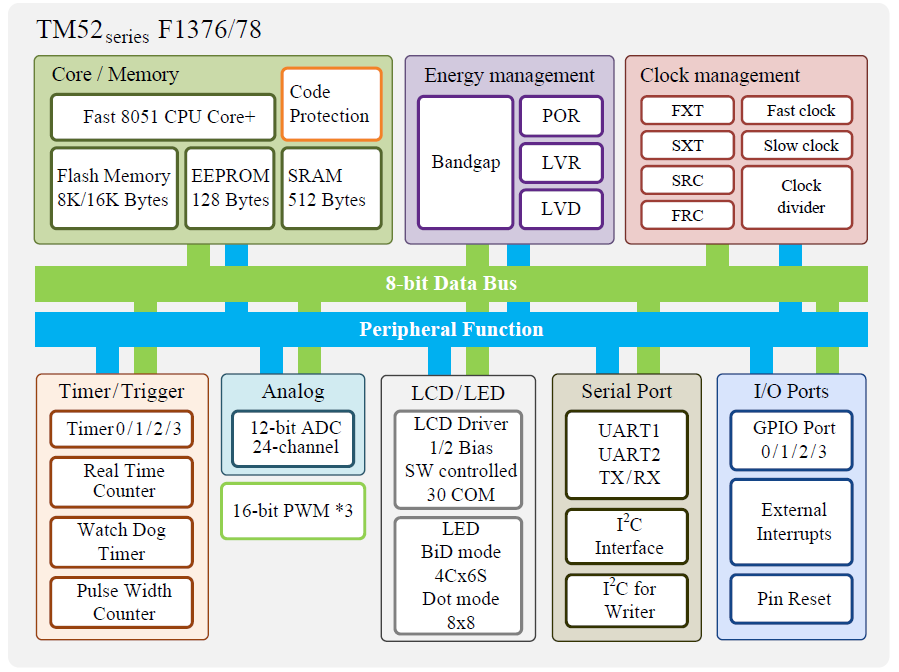

BLOCK DIAGRAM


FEATURES
1.	Standard 8051 Instruction set, fast machine cycle
	Executes instructions six times faster than the standard 8051.
2.	Flash Program Memory
	8K Bytes (TM52F1378)
	16K Bytes (TM52F1376)
	Support “In Circuit Programming” (ICP) or “In System Programming” (ISP) for the Flash code
	Byte Write “In Application Programming” (IAP) mode is convenient as Data EEPROM access
	Code Protection Capability
	1,000 erase times at least
	10 years data retention at least
3.	128 Bytes EEPROM Memory
	50K erase times at least
	10 years data retention at least
4.	Total 512 Bytes SRAM (IRAM + XRAM)
	256 Bytes IRAM in the 8051 internal data memory area
	256 Bytes XRAM in the 8051 external data memory area (accessed by MOVX Instruction)
5.	Four System Clock type selections
	Fast clock from 1~18MHz Crystal (FXT)
	Fast clock from Internal RC (FRC, 18.432 MHz)
	Slow clock from 32768Hz Crystal (SXT)
	Slow clock from Internal RC (SRC,130 KHz)
	System Clock can be divided by 1/2/4/16 option
6.	8051 Standard Timer – Timer0/1/2
	16-bit Timer0, also supports T0O clock output for Buzzer application
	16-bit Timer1
	16-bit Timer2, also supports T2O clock output for Buzzer application
7.	15-bit Timer3
	Clock source is Slow clock or FRC/512
	Interrupt period can be clock divided by 32768/16384/8192/4096/2048/1024/512/256 option
8.	UARTs
	UART1, 8051 standard UART
	UART2, the second UART, supports only mode1 and mode3
	With UART pin select option
 
9.	Three independent 16 bits PWMs with period-adjustment
	With PWM0/PWM1/PWM2 Interrupt
10.	I2C interface (Master / Slave)
11.	12-bit ADC with 22 channels External Pin Input and 2 channels Internal Reference Voltage
	Internal Reference Voltage: VBG 1.20V±1% @VCC=5V~2.5V, 25℃
	Internal Reference Voltage: 1/4VCC
	ADC reference voltage = 2.5V / VCC
12.	LCD Driver
	Software controlled COM00~07, COM10~17, COM20~25, COM30~37 (Max. 30 pins)
	1/2 LCD Bias
13.	LED Controller/Driver
	COM with Dead Time
	LED hold option
	Brightness uniform / enhancement  option
【Bidirection (BiD) matrix mode】
	4C x 6S, Max. 10 pins up to 48 dots
	3groups, 8-level Brightness
【Dot matrix mode】
	8C x 8S, Max. 9 pins up to 64 dots
	8-level Brightness
14.	13 Sources, 4-level priority Interrupt
	Timer0/Timer1/Timer2/Timer3 Interrupt
	INT0/INT1 pin Falling-Edge/Low-Level Interrupt
	All Pin Change Wake up Interrupt from Stop/Halt mode
	UART1/UART2 TX/RX Interrupt
	LVD Interrupt
	ADC Interrupt
	I2C Interrupt
	PWM0/PWM1/PWM2 Interrupt
15.	Pin Interrupt can Wake up CPU from Stop/Halt mode
	P3.2/P3.3 (INT0/INT1) Interrupt & Wake up
	Each pin can be defined as Wake up interrupt pin (by pin change)
Note: Chip cannot enter Stop Mode if INTn pin is low and wakeup is enabled. (INTn=0 and EXn=1, n=0~1)
 
16.	Max. 30 Programmable I/O pins
	CMOS Output
	Pseudo-Open-Drain, or Open-Drain Output
	Schmitt Trigger Input
	Pin Pull-up / Pull-down can be Enabled or Disabled
	All pin with High sink (60mA@VCC=5V,VOL=0.1VCC)
17.	Independent RC Oscillating Watch Dog Timer
	240ms/120ms/60ms/30ms selectable WDT timeout options
18.	Five types Reset
	Power on Reset
	Selectable External Pin Reset
	Selectable Watch Dog Reset
	Software Command Reset
	Selectable Low Voltage Reset
19.	16-level Low Voltage Detect
	4.15V/4.01V/3.87V/3.73V/3.59V/3.45V/3.31V/3.17V/
3.03V/2.89V/2.75V/2.61V/2.47V/2.33V/2.19V/2.05V
20.	16-level Low Voltage Reset
	4.15V/4.01V/3.87V/3.73V/3.59V/3.45V/3.31V/3.17V/
3.03V/2.89V/2.75V/2.61V/2.47V/2.33V/2.19V/2.05V
21.	Five Power Operation Modes
	Fast/Slow/Idle/Stop/Halt mode
22.	Integrated 16-bit Cyclic Redundancy Check function
23.	Multiplication and division
	8 bit Multiplier & Divider (standard 8051)
	16 bits Multiplier & Divider
	32 bits ÷ 16 bits hardware Divider
24.	On-chip Debug/ICE interface
	Use P3.0/P3.1 pin or P0.0/P0.1 pin
	Share with ICP programming pin
25.	Operating Voltage and Current
	VCC = 2.2V ~ 5.5V @FSYSCLK=18.432MHz (-40℃ ~ +85℃)
	ICC = 0.1µA @Stop mode, PWRSAV=1, VCC=3V
	ICC = 5.5µA @Halt mode, PWRSAV=1, VCC=3V
	ICC = 16µA @Idle mode, PWRSAV=1, VCC=3V
 
26.	Operating Temperature Range
	–40°C ~ +85°C
27.	Package Types
	32-pin LQFP (7x7x1.4 mm)
	28-pin SOP (300 mil)
	28-pin SSOP (150 mil)
	28-pin QFN (4x4x0.75-0.4 mm)
	24-pin SSOP (150 mil)
	20-pin SOP (300 mil)
	20-pin TSSOP (173 mil)
	20-pin QFN (3x3x0.75-0.4 mm) (L=0.25 mm)
	16-pin SOP (150 mil)
