Tenx Brand-new Release TM52F2261/F2264 - Low Power Consumption 8051 Series
2015/01/26
    TM52F2261/F2264 not only integrates low power consumption clock and LCD display
function, but also is added with power save touch key function, very suitable for battery-
powered application product, for example LCD display touch key remote control, touch
1key watch, touch key timer, touch key calculator, touch key password-locked safe,
etc…, the specification meets engineering rules -40℃~85℃ operating temperature and
high noise immunity EFT/ESD characteristics demand, suitable for various AC power
supply product fields application.

    TM52F2261/F2264 uses tenx L51 CPU Core, compared to the traditional 8051 IC, the
overall power consumption is lower; operating speed is faster and more efficient.
TM52F2261 keeps most of the characteristics in standard 8051, program memory
provides 16 KBytes flash memory space, and also provides ICP/ISP/IAP storage
function; developers can store data directly into Flash memory space, while internal
SRAM provides 768 Bytes storage space, UART interface is compatible with standard
8051, and provides one set of SPI interface, Timer0/1/2 is standard 8051 timer.
Besides, in Timer3 user can use 32.768 KHz clock source. Timer3 provides 23-bit timer
which allows long period of counting, can calibrate accurately +/- 0.5 ppm ~ 61 ppm
calibration ranges, provides developer very accurate clock source.

    TM52F2261 provides power save Auto Touch key structure, which adopts touch key
hardware interrupt to do touch key interrupt. When CPU enters Idle mode, it still can
detect touch key, therefore, standby current touch key detection can be less than 1 uA.
TM52F2261 touch key structure is high-integrated IC, requires very little external
element, can provide up to 14 Touch key input, at the same time can provide up to 4
Touch key wake-up for polling detection. Besides, internal Touch Key standard weight
function can provide Touch Key standard weight function value for external bad
environment, which is used for calibrating external touch point and internal touch weight
function value, to strengthen Touch Key detection accuracy. When external touch key
detects hand touch operation, will trigger hardware interrupt to awake CPU for touch
key detection judgment, so battery voltage in 3V, internal chip is using power saving
operation. When CPU operates clock source 32.768 KHz in Idle mode, enables Auto
Touch key polling detection and LCD display, the minimal power consumption can be 2
uA.

    TM52F2261/F2264 provides power saving LCD display structure, the driving capability
is up to 10 COM* 43 SEG selectable LCD pixel output, 1 /3 ~ 1/10 duty and 1/3, 1/4
LCD bias voltage. VL1/ VL2 / VL3 / VL4 voltage is using capacitor boost Voltage Pump,
LCD Bias Regulator Output (VL1) = 1.0V ~ 1.5V provides 16-level selection. Under 32
KHz condition, can select internal power save to achieve low power consumption
characteristic. When battery voltage is 3V, with internal power save, LCD is enabled,
and when operating clock source is 32.768 KHz in Idle mode, the minimum power
consumption can be 1 uA. With the same condition, if LCD is disabled, the minimum
standby power consumption can be 0.7 uA. Besides, TM52F2261 supports LED
transductive output, LED can support up to 6 COM* 30 SEG pixel output, each COM pin
output capability is 40 mA. In power supply control, TM52F2261 provides internal
bandgap for voltage calibration, at the same time provides Tiny current LDO regulator
output for IC use. And also allows developer chooses different power saving in different
perating mode (Fast/Slow/Idle/Stop).

    For TM52F2261/F2264, tenx plans of using convenient USB development tool (EV2261
board), which can directly use the original IC (Real chip) to do ICE in-line trimming.
Using USB EV2261 Board immediately simulate IC condition, can access memory space
and set register directly, provide routine breakpoint and step, can execute tracking
analysis data, increase program development efficiency and debug capability, very
suitable for fast product development.

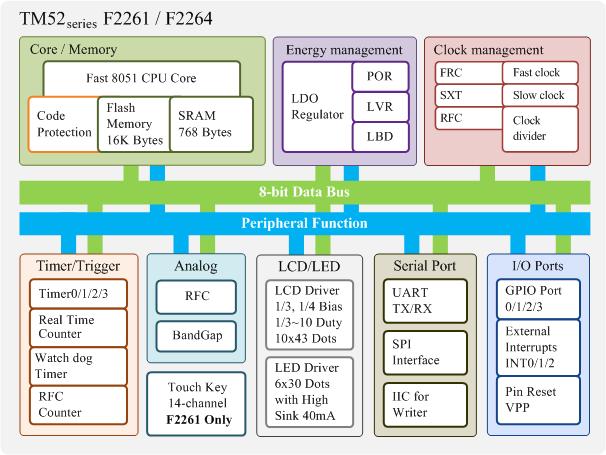

BLOCK DIAGRAM


FEATURES
1. Standard 8051 Instruction set, fast machine cycle
    . Executes instructions six times faster than the traditional 8051.
2. 16K Bytes Flash Program Memory
    . Support “In Circuit Programming” (ICP) or “In System Programming” (ISP) for the Flash code
    . Byte Write “In Application Programming” (IAP) mode is convenient as Data EEPROM access
    . Code Protection Capability
3. Total 768 Bytes SRAM (IRAM + XRAM)
    . 256 Bytes IRAM in the 8051 internal data memory area
    . 512 Bytes XRAM in the 8051 external data memory area (accessed by MOVX Instruction)
4. Three System Clock type Selections
    . Fast clock from Internal RC (3.75MHz @VDD=3V)
    . Slow clock from 32768Hz Crystal
    . Slow clock from RFC
    . System Clock can be divided by 1/2/4/8/16/32/64/128 option
    . System Clock output pin (TCO) for EL / IR application
5. 8051 Standard Timer – Timer0 / 1 / 2
    . 16-bit Timer0, also supports RFC clock input counting
    . 16-bit Timer1, also supports T1O / T1B clock output for Buzzer / IR application
    . 16-bit Timer2, also supports T2O clock output for Buzzer / IR application
6. 23-bit Timer3 used for Real Time 32768Hz Crystal counting
    . ± 0.5 ppm ~ 61 ppm interrupt rate adjustable
    . MSB 8-bit overflow auto-reload
    . 0.25 sec, 0.5 sec, 1.0 sec or overflow Interrupt
7. 14-Channel Touch Key (F2261 only)
    . 1~4 Key H/W Auto Scan Mode (ATK), Sensitivity Adjustable for each Key
    . Interrupt / Wake-up CPU while Key Pressed
8. 8051 Standard UART
    . One Wire UART option can be used for ISP or other application
9. SPI Interface
    . Master or Slave mode selectable
    . Programmable transmit bit rate
    . Serial clock phase and polarity options
    . MSB-first or LSB-first selectable
10. 11 Sources, 4-level priority Interrupt
    . Timer0 / Timer1 / Timer2 / Timer3 Interrupt
    . INT0 / INT1 Falling-Edge / Low-Level Interrupt
    . Port1 Pin Change Interrupt
    . UART TX/RX Interrupt
    . P2.7 (INT2) Interrupt
    . Touch Key Interrupt
    . SPI Interrupt
11. Pin Interrupt can Wake up CPU from Power-Down (Stop) mode
    . P3.2 / P3.3 (INT0 / INT1) Interrupt & Wake-up
    . P2.7 (INT2) Interrupt & Wake-up
    . Each Port1 pin can be defined as Interrupt & Wake-up pin (by pin change)
12. Max. 32 Programmable I/O pins
    . CMOS Output
    . Pseudo-Open-Drain, or Open-Drain Output
    . Schmitt Trigger Input
    . Pin Pull-up can be Enabled or Disabled
13. Resistance to Frequency Converter (RFC)
    . RFC clock divided by 1/4/16/64 signal can be assigned as Timer0 event count input
    . RFC clock can be used as System clock source
14. LCD Controller / Driver
    . 1/3 ~ 1/10 Duty
    . Max. 10 COM x 43 SEG
    . LCD Bias Regulator Output (VL1) = 1.0V ~ 1.5V adjustable (16 steps)
    . 1/3 or 1/4 LCD Bias, VL2 / VL3 / VL4 is Voltage Pump by VL1
    . Frame Rate: 40~90Hz
15. LED Controller / Driver
    . 1/3 ~ 1/6 Duty
    . Max. 6 COM x 30 SEG
    . 40 mA High Sink COM, Active Low
    . Active High or Active Low Segment output
16. BandGap Voltage Reference for Low Battery Detection (LBD)
    . Detect VBAT voltage level from 2.5V to 3.0V
17. Built-in tiny current LDO Regulator for chip internal power supply (VDD)
    . VDD voltage level can be set from 1.2V to 1.8V in different mode
18. Watch Dog Timer based on System Clock
    . Running in Fast / Slow Mode, Stop counting in Idle / Stop Mode
    . 32K or 64K counts overflow Reset
19. 5 types Reset
    . Power on Reset
    . Selectable External Pin Reset
    . Selectable Watch Dog Reset
    . Software Command Reset
    . Selectable Battery Low Voltage Reset (when VBAT<1.6V)
20. 4 Power Operation Modes
    . Fast / Slow / Idle / Stop Mode
21. On-chip Debug / ICE interface
    . Use P1.2 / P1.3 pin
    . Share with ICP programming pin
22. Operating Voltage and Current
    . VBAT=2.0V~4.2V
    . 0.6uA LCD Current @VBAT=3V
    . 0.1uA LVR Current @VBAT=3V
    . 0.7uA 32K Crystal and System Clock Current @VDD=1.5V
    . 0.5uA Touch Key Current @VBAT=3V
    . Total 1.9uA Idle mode Current with LCD on, LVR on and TK scan @VBAT=3V, VDD=1.5V
23. Operating Temperature Range
    . –40°C ~ +85°C
24. 64 / 80-pin LQFP Package
