Tenx Brand-new Release TM52F2260—Low Power Consumption 8051 Series
    TM52F2260 integrates low power consumption clock and LCD display function, very
suitable for battery-powered application product, for example LCD display remote
control, hygrometer, watch, timer, calculator, password-locked safe, etc…, suitable for
applications in various fields of products, the specification meets engineering rules -40℃
~85℃ operating temperature and high noise immunity EFT/ESD characteristics demand.

    TM52F2260 uses tenx L51 CPU Core, compared to the traditional 8051 IC, the overall
power consumption is lower; operating speed is faster and more efficient. TM52F2260
keeps most of the characteristics in standard 8051, program memory provides 16
KBytes flash memory space, and also provides ICP/ISP/IAP storage function;
developers can store data directly into Flash memory space, while internal SRAM
provides 256 Bytes storage space. Additionally, external access memory is 1280 Bytes,
overall internal storage is more than 1.5 KBytes, UART interface is compatible with
standard 8051, and Timer0/1/2 is standard 8051 timer. Besides, in Timer3 user can use
32.768 KHz clock source. Timer3 provides 23-bit timer which allows long period of
counting, can calibrate accurately +/- 0.5 ppm ~ 61 ppm calibration ranges, provides
developer very accurate clock source.

    TM52F2260 provides power saving LCD display structure, the driving capability uses
4COM, 28~36SEG selectable LCD pixel output, 1/3 or 1/4 duty and 1/3 bias voltage. In
power supply control, TM52F2260 provides internal bandgap for voltage calibration, at
the same time provides Tiny current LDO regulator output for IC use. And also allows
developer chooses voltage output 1.1V~1.8V to CPU in different operating mode, under
32 KHz condition, can select 1.1V as the minimum operating voltage, to achieve power
save characteristic. When battery voltage is 3V, VDD is set to 1.5V, LCD is enabled, and
when operating clock source is 32.768 KHz in Idle mode, the minimum power
consumption can be 1 uA. With the same condition, if LCD is disabled, the minimum
power consumption can be 0.7 uA.

    For TM52F2260, tenx plans of using convenient USB development tool (EV2260
board), which can directly use the same IC (Real chip) to do ICE in-line trimming. Using
USB EV2260 Board immediately simulate IC condition, can access memory space and
set register directly, provide routine breakpoint and step, can execute tracking analysis
data, increase program development efficiency and debug capability, very suitable for
fast product development.

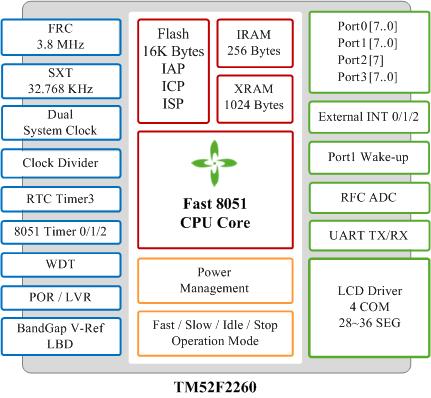

1. Standard 8051 Instruction set, fast machine cycle
    . Executes instructions six times faster than the traditional 8051.
2. 16K Bytes Flash Program Memory
    . Support “In Circuit Programming” (ICP) or “In System Programming” (ISP) for the Flash code
    . Byte Write “In Application Programming” (IAP) mode is convenient as Data EEPROM access
    . Code Protection Capability
3. Total 1280 Bytes SRAM (IRAM + XRAM)
    . 256 Bytes IRAM in the 8051 internal data memory area
    . 1024 Bytes XRAM in the 8051 external data memory area (accessed by MOVX Instruction)
4. Three System Clock type Selections
    . Fast clock from Internal RC (FRC, 3.75MHz @VDD=3V)
    . Slow clock from 32768Hz Crystal (SXT)
    . Slow clock from RFC
    . System Clock can be divided by 1/4/16/64 option
    . System Clock output pin (TCO) for EL / IR application
5. 8051 Standard Timer – Timer0 / 1 / 2
    . 16-bit Timer0, also supports RFC clock input counting
    . 16-bit Timer1, also supports T1O / T1B clock output for Buzzer / IR application
    . 16-bit Timer2, also supports T2O clock output for Buzzer / IR application
6. 23-bit Timer3 used for Real Time 32768Hz Crystal counting
    . ± 0.5 ppm ~ 61 ppm interrupt rate adjustable
    . MSB 8-bit overflow auto-reload
    . 0.25 sec, 0.5 sec, 1.0 sec or overflow Interrupt
7. 9-Sources, 4-level priority Interrupt
    . Timer0 / Timer1 / Timer2 / Timer3 Interrupt
    . INT0 / INT1 Falling-Edge / Low-Level Interrupt
    . Port1 Pin Change Interrupt
    . UART TX/RX Interrupt
    . P2.7 (INT2) Interrupt
8. Pin Interrupt can Wake up CPU from Power-Down (Stop) mode
    . P3.2 / P3.3 (INT0 / INT1) Interrupt & Wake-up
    . P2.7 (INT2) Interrupt & Wake-up
    . Each Port1 pin can be defined as Interrupt & Wake-up pin (by pin change)
9. 8051 Standard UART
    . One Wire UART option can be used for ISP or other application
10. Max. 25 Programmable I/O pins
    . CMOS Output
    . Pseudo-Open-Drain, or Open-Drain Output
    . Schmitt Trigger Input
    . Pin Pull-up can be Enabled or Disabled
11. Resistance to Frequency Converter (RFC)
    . RFC clock divided by 1/4/16/64 signal can be assigned as Timer0 event count input
    . RFC clock can be used as System clock source
12. LCD Controller / Driver
    . 1/3 or 1/4 Duty
    . 4 COM, 28 ~ 36 SEG
    . 1/3 Bias, VL1 = VBAT / 3
    . Frame Rate = 40Hz ~ 90Hz
13. BandGap Voltage Reference for Low Battery Detection (LBD)
    . Detect VBAT voltage level from 2.5V to 3.1V
14. Built-in tiny current LDO Regulator for chip internal power supply (VDD)
    . VDD voltage level can be set from 1.2V to 1.9V
15. Watch Dog Timer based on System Clock
    . Running in Fast / Slow Mode, Stop counting in Idle / Stop Mode
    . 32K or 64K counts overflow Reset
16. 5-types Reset
    . Power on Reset
    . Selectable External Pin Reset
    . Selectable Watch Dog Reset
    . Software Command Reset
    . Selectable Battery Low Voltage Reset (when VBAT < 1.6V)
17. 4-types Power Operation Modes
    . Fast / Slow / Idle / Stop Mode
18. On-chip Debug / ICE interface
    . Use P1.2 / P1.3 pin
    . Share with ICP programming pin
19. Operating Voltage and Current
    . VBAT = 2.0V ~ 4.2V
    . 0.3uA LCD Current @VBAT = 3V
    . 0.1uA LVR Current @VBAT = 3V
    . 0.6uA 32K Crystal and System Clock Current @VDD = 1.5V
    . Total 1.0uA Idle mode Current with LCD on and LVR on, @VBAT = 3V, VDD = 1.5V
20. Operating Temperature Range
    . –40°C ~ +85°C
21. 64-pin LQFP Package
