tenx launched a new TM52F5274 / F5278 high efficiency type F51 series
2014/12/19
    TM52F5274/F5278 integrates high efficiency F51 internal core, with accurate
12-bit resolution ADC, low power consumption real time clock and LCD/LED
display function, TM52F5274 is very suitable for home appliances, for example
LCD/LED display rice cooker, coffee maker, electric stove,  thermos, battery
chargers, hood, etc… AC home appliances, while TM52F5278 also has touch key
function, can be applied in products such as: LCD display touch key rice cooker,
touch key electric stove, touch key coffer maker, touch key thermos, touch key
hood , touch key control home appliances, etc….The specification meets
engineering rules -40℃~85℃ operating temperature and high noise immunity
EFT/ESD characteristics demand, through 10Vrms for Conducted Susceptibility
(CS) test in touch, suitable for use in a variety of AC power supply product field.

    TM52F5274/F5278 uses tenx F51 CPU Core, compared to the traditional 8051
IC, the overall operating speed is faster and more efficient. TM52F5274/F5278
keeps most of the characteristics in standard 8051, program memory provides 8
K Bytes flash memory space, and also provides ICP/ISP/IAP storage function;
developers can store data directly into Flash memory space, while internal IRAM
provides 256 Bytes storage space, and internal XRAM provides 256 Bytes
storage space, UART interface is compatible with standard 8051, and provides
one set of SPI interface, Timer0/1/2 is standard 8051 timer. Besides, in Timer3
user can use 32.768 KHz clock source. Timer3 provides 15-bit timer which allows
time counting, provides developer very accurate clock source.

    TM52F5274/F5278 provides very varied LCD display architecture, the driving
capability is up to 4 COM * 18 SEG selectable LCD pixel, 1/3 and 1/4 duty,
provides 1/3 Bias potential and supports 8 brightness selection. Besides, it also
supports LED transductive output, LED can support up to 4 COM * 18 SEG pixel
output, each COM pin output capability is 40 mA in external output control. In
internal TM52F5274/F5278 provides dual frequency input FRC 7.3728 MHz or
SRC 24 KHz, while external also provides dual frequency input FXT 1~8 MHz and
SXT 32.768 KHz. And allows developer chooses system frequency, can select
different operating frequency under different operating mode (Fast/Slow/Idle/Stop);
can achieve the overall power saving.

    TM52F5274/F5278 provides 2 sets of 8+2 PWM digital output, while external
input provides 10-ch input 12-bit ADC. Besides, TM52F5278 provides 14-ch
capacitive touch (TK0~TK13), while providing very low power of ATK (TK0~TK3)
Touch key interrupt structure, using touch key hardware for touch key
detection. Therefore, touch key detection speed is very fast, the overall power
consumption is very small when detected, TM52F5278 touch key structure is
highly-integrated IC, only needs very little external element, yet can provide up
to 14 touch key inputs.

    For TM52F5274/F5278, tenx plans of using convenient USB development tool
T-Link ICE Board connection EV5278 board, which can directly use the original
IC (Real chip) to do ICE in-line trimming. Using USB EV5278 Board immediately
simulate IC condition, can access memory space and set register directly,
provide routine breakpoint and step, can execute tracking analysis data,
ncrease program development efficiency and debug capability, very suitable for
fast product development. Packaging with 28/32 SOP/DIP provide the best
possible package pin.

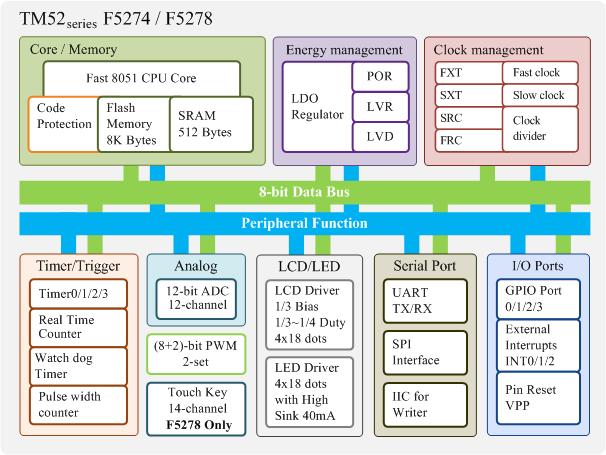

BLOCK DIAGRAM


FEATURES
1. Standard 8051 Instruction set, fast machine cycle
    . Executes instructions six times faster than the traditional 8051
2. 8K Bytes Flash Program Memory
    . Support “In Circuit Programming” (ICP) or “In System Programming” (ISP) for the Flash code
    . Byte Write “In Application Programming” (IAP) mode is convenient as Data EEPROM access
    . Code Protection Capability
3. Total 512 Bytes SRAM (IRAM + XRAM)
    . 256 Bytes IRAM in the 8051 internal data memory area
    . 256 Bytes XRAM in the 8051 external data memory area (accessed by MOVX Instruction)
4. Four System Clock type Selections
    . Fast clock from 1~8 MHz Crystal
    . Fast clock from Internal RC (7.3728 MHz)
    . Slow clock from 32768 Hz Crystal
    . Slow clock from Internal RC (24 KHz)
    . System clock can be divided by 1/2/4/16 option
5. 8051 Standard Timer – Timer0/1/2
    . 16-bit Timer0, also supports T0O clock output for Buzzer application
    . 16-bit Timer1
    . 16-bit Timer2, also supports T2O clock output for Buzzer application
6. 15-bit Time3
    . Clock source is Slow clock
    . Interrupt period can be clock divided by 32768/16384/8192/128 option
7. 8051 Standard UART
    . One Wire UART option can be used for ISP or other application
8. Two independent "8+2" bits PWMs with prescaler/period-adjustment
9. SPI Interface
    . Master or Slave mode selectable
    . Programmable transmit bit rate
    . Serial clock phase and polarity options
    . MSB-first or LSB-first selectable
10. 14-Channel Touch Key (F5278 only)
11. 12-bit ADC with 10 Channels External Pin Input and 2 Channels Internal Reference Voltage
12. LCD Controller/Driver
    . 1/3~1/4 Duty
    . Max. 4 COM x 18 SEG
    . 1/3 LCD Bias
    . 8 Brightness Level selection
13. LED Controller/Driver
    . 1/3~1/4 Duty
    . Max. 4 COM x 18 SEG
    . 40mA High Sink COM
    . Active High or Active Low Common Output
    . COM Dead Time option
14. 11 Sources, 4-level Priority Interrupt
    . Timer0/Timer1/Timer2/Timer3 Interrupt
    . INT0/INT1 Falling-Edge/Low-Level Interrupt
    . Port1 Pin Change Interrupt
    . UART TX/RX Interrupt
    . P3.7 (INT2) Interrupt
    . ADC/Touch Key Interrupt
    . SPI Interrupt
15. Pin Interrupt can Wake up CPU from Power-Down (Stop) mode
    . P3.2/P3.3 (INT0/INT1) Interrupt & Wake-up
    . P3.7 (INT2) Interrupt & Wake-up
    . Each Port1 pin can be defined as Interrupt & Wake-up pin (by pin change)
16. Max. 30 Programmable I/O pins
    . CMOS Output
    . Pseudo-Open-Drain, or Open-Drain Output
    . Schmitt Trigger Input
    . Pin Pull-up can be Enable or Disable
17. Independent RC Oscillating Watchdog Timer
    . 360ms/180ms/90ms/45ms Selectable WDT Timeout options
18. Five types Reset
     . Power on Reset
     . Selectable External Pin Reset
     . Software Command Reset
     . Selectable Watchdog Timer Reset
     . Selectable Low Voltage Reset
19. 3-level Low Voltage Reset
     . 1.8V/2.3V/2.9V (can be disabled)
20. 1-level Low Voltage Detect
     . 2.3V (can be disabled)
21. Four Power Saving Operation Modes
     . Fast/Slow/Idle/Stop Mode
22. On-chip Debug/ICE interface
     . Use P3.0/P3.1 pin or P2.4/P2.5 pin
     . Share with ICP programming pin
23. Operating Voltage and Current
     . VCC = 2.3V ~ 5.5V @FSYSCLK = 7.3728 MHz
     . VCC = 1.8V ~ 5.5V @FSYSCLK = 3.6864 MHz
     . ICC = 1.7µA @Stop mode, LVR enable, MODE3V = 0, PWRSAV = 1, VCC = 5V
     . ICC = 0.5µA @Stop mode, LVR enable, MODE3V = 0, PWRSAV = 1, VCC = 3V
     . ICC = 0.5µA @Stop mode, LVR enable, MODE3V = 1, PWRSAV = 1, VCC = 3V
24. Operating Temperature Range
     . –40*C ~ +85*C
25. Package Types
     . Skinny DIP 28-pin (300 mil)
     . SOP 28-pin (300 mil)
     . DIP 32-pin (600 mil)
     . SOP 32-pin (300 mil)
