Tenx Brand-new Release TM52F5284/F5288—High Efficiency 8051 Series
TM52F5284/F5288 integrates high efficiency F51 internal core, with accurate 12-bit ADC,
low power consumption clock and LCD display function, TM52F5288 is very suitable for
home appliances, for example LCD display rice cooker, LCD display electric stove, LCD
display thermos AC home appliances, etc…, while TM52F5284 also has touch key function,
can be applied in products such as: LCD display touch key rice cooker,
touch key electric stove, touch key thermos, touch key smoke machine, touch key
coffee machine, touch key home appliances, etc….The specification meets engineering
rules -40℃~85℃ operating temperature and high noise immunity EFT/ESD characteristics
demand, suitable for use in a variety of AC power supply product field.

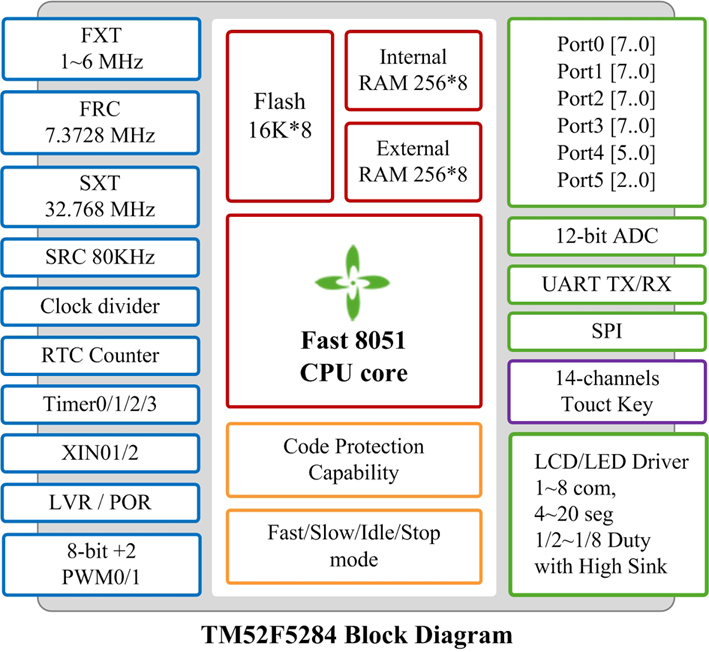

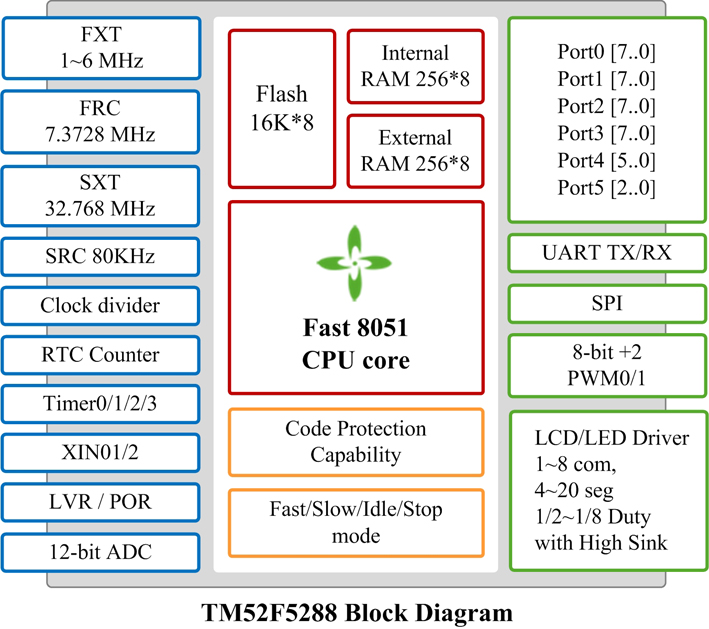

TM52F5284/F5288 uses tenx F51 CPU Core, compared to the traditional 8051 IC, the
overall operating speed is faster and more efficient. TM52F5284/F5288 keeps most of
the characteristics in standard 8051, program memory provides 16 KBytes flash
memory space, and also provides ICP/ISP/IAP storage function; developers can store
data directly into Flash memory space, while internal IRAM provides 256 Bytes storage
space, and internal XRAM provides 256 Bytes storage space, UART interface is
compatible with standard 8051, and provides one set of SPI interface, Timer0/1/2 is
standard 8051 timer. Besides, in Timer3 user can use 32.768 KHz clock source. Timer3
provides 15-bit timer which allows time counting, provides developer very accurate
clock source.

TM52F5284/F5288 provides very varied LCD display architecture, the driving capability
is up to 8 COM*20 SEG selectable LCD pixel, 1/2 ~ 1/8 duty, provides selectable 1/3,
1/4 Bias potential. Besides, it also supports LED transductive output, LED can support up
to 8 COM* 20 SEG pixel output, each COM pin output capability is 40 mA in external
output control. In internal TM52F5284/F52881 provides dual frequency input FRC 7.3728 MHz
or SRC 80 KHz, while external also provides dual frequency input FXT 1~6 MHz and SXT
32.768 KHz. And allows developer chooses system frequency, can select different
operating frequency under different operating mode (Fast/Slow/Idle/Stop); can achieve
the overall power saving.

TM52F5284/F5288 provides 2 sets of 8+2 PWM digital output, while external input
provides 10-ch input 12-bit ADC. Besides, TM52F5284 provides very low power Touch
key structure, using touch key hardware for touch key detection. Therefore, touch key
detection speed is very fast, the overall power consumption is very small when
detected, TM52F5284 touch key structure is highly-integrated IC, only needs very little
external element, yet can provide up to 12 touch key inputs.

For TM52F5284/F5288, tenx plans of using convenient USB development tool (EV5288
board), which can directly use the original IC (Real chip) to do ICE in-line trimming.
Using USB EV5288 Board immediately simulate IC condition, can access memory space
and set register directly, provide routine breakpoint and step, can execute tracking
analysis data, increase program development efficiency and debug capability, very
suitable for fast product development.

1. Standard 8051 Instruction Set, fast machine cycle
2. 16 KBytes Flash Program ROM
    . Support “In Circuit Programming” (ICP) or “In System Programming” (ISP) for the ROM Code
    . Byte Write “In Application Programming” (IAP) mode is convenient as Data EEPROM access
3. Total 512 Bytes SRAM (IRAM + XRAM)
    . 256 Bytes IRAM in the 8051 internal data memory area
    . 256 Bytes XRAM in the 8051 external data memory area (accessed by MOVX Instruction)
4. 4 Independent Timers
    . 16-bit Timer0 (8051 Standard), with T0 output pin for Buzzer application.
    . 16-bit Timer1 (8051 Standard)
    . 16-bit Timer2 (8051 Standard), with T2 output pin for Buzzer application.
    . 15-bit Timer3 used for real time 32768 Hz Interrupt / Wake-up
5. 8051 Standard UART
    . One Wire UART option can be used for ISP or other application
6. Two independent "8+2" PWMs with prescaler/period-adjustment
7. Pin Interrupt can Wake up CPU from Power-Down (Stop) mode
    . P3.2 / P3.3 (XINT0 / XINT1) Interrupt & Wake-up
    . P4.7 (XINT2) Interrupt & Wake-up
    . Each Port1 pin can be defined as Interrupt & Wake-up pin (by pin change)
8. 11 Sources, 4-level priority Interrupt
    . Timer0/Timer1/Timer2/Timer3 Interrupt
    . XINT0/XINT1 Falling-Edge/Low-Level Interrupt
    . Port1 Pin Change Interrupt
    . UART TX/RX Interrupt
    . P4.7 (XINT2) Interrupt
    . ADC / Touch Key Interrupt
    . SPI Interrupt
9. Max. 42 Programmable I/O pins
    . CMOS Output
    . Pseudo-Open-Drain, Open-Drain Output
    . Schmitt Trigger Input
    . Pin Pull-up can be Enabled or Disabled
10. 12 Channel Touch Key for TM52F5284 only
11. 12-bit ADC with 10 Channels Input
12. LCD Controller/Driver
    . Static, 1/2, 1/3, 1/4, 1/5, 1/6, 1/7 or 1/8 Duty
    . 1~8 COM, 4~20 SEG selectable
    . 1/3 or 1/4 Bias
    . 8 Brightness Levels selection
13. LED Controller/Driver
    . Static, 1/2, 1/3, 1/4, 1/5, 1/6, 1/7 or 1/8 Duty
    . 1~8 COM, 4~20 SEG selectable
    .COM with High Sink
    . COM dead time option
14. 3-level Low Voltage Reset
    . 1.9V / 2.3V / 2.9V
    . Low Voltage Detection Flag (2.3V)
15. Independent RC Oscillating Watch Dog Timer
    . 400 ms / 200 ms / 100 ms / 50 ms Selectable WDT Timeout options
16. 5 types Reset
    . Power on Reset
    . Selectable External Pin Reset
    . Selectable Watch Dog Reset
    . Software Command Reset
    .Selectable Low Voltage Reset
17. 4 System Clock type Selections
    . Fast Crystal (1~6 MHz)
    . Fast Internal RC (7.3728 MHz)
    . Slow Crystal (32768 Hz)
    . Slow Internal RC (80 KHz)
    . Clock divided by 1/2/4/16 Selectable
18. 4 Power Saving Operation Modes
    . Fast / Slow / Idle / Stop Mode
19. Code Protection Capability
    . Full Flash ROM Protection
    . MOVC ROM Code Protect
20. On-chip Debug / ICE interface
    . Use P1.2 / P1.3 pin
    . Share with ICP programming pin
21. Operating Voltage: 1.6V~5.5V
22. 44-pin QFP, 32-pin DIP/SOP Package
