十速新推出~TM57PE10 高性能、超低電壓1.1V電池應用OTP MCU
2011/05/31
十速科技新推出TM57PE10 超低電壓1.1V電池應用OTP MCU，8位元微處理器是以精簡指令集運算、雙周期的微處理器應用，為一次性可程式燒錄記憶體1 K / OTP基本通用I/O型微控制器。本產品主要特色為具有雙時鐘功能，以及在內部低速的RC模式下操作，其電壓可以工作在1.1V超低電壓，而工作電壓在1.5V時，頻率仍可以操作在6MHz高速狀態，並且內振頻率(IRC)可以維持在 8MHz ±3%的誤差，同時擁有很寬的操作頻率範圍2K~24MHz。除此之外，TM57PE10內部有一組硬體類比電壓比較器與二組硬體脈波寬度調變器(PWM)，PWM0可以調整頻率與脈波寛度。同時內置看門狗計數器(WDT)與2組獨立的計數器(TIMER)，在閒置模式下，TIMER2具有喚醒功能。並且TM57PE10具有可程式記憶有條件支援TTP (Two Time Programmable) 兩次燒入功能，在電池控制應用上是你最佳選擇方案。產品特色符合綠色環保、節能、省電高效能之訴求，低成本高度整合，不僅體積小、功能齊全使用方便，符合工業上-40℃~+85 ℃工作溫度之要求。 TM57PE10封裝型態提供14-Pin & 18Pin DIP/SOP，主要應用於省電簡易控制、玩具、LED控制燈及小家電應用等產品。

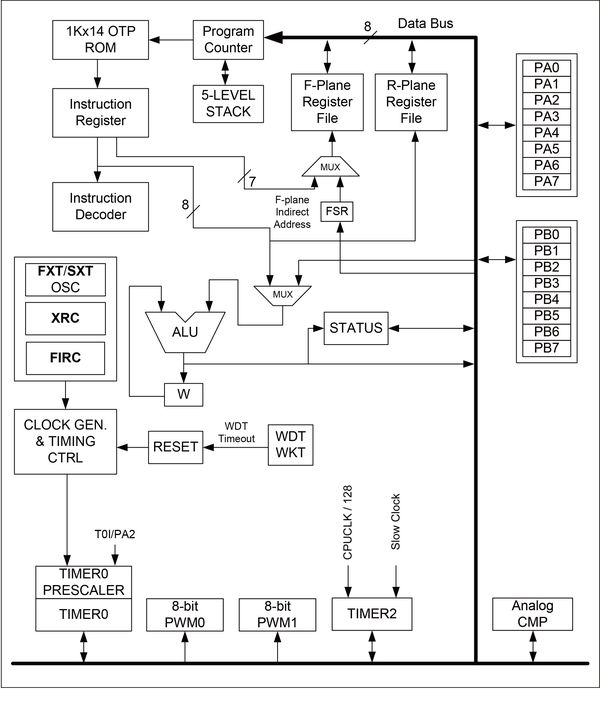

BLOCK DIAGRAM
FEATURES 1. ROM: 1K x 14 bits OTP or 512 x 14 bits TTP™ (Two Time Programmable ROM) 2. RAM: 48 x 8 bits 3. STACK: 5 Levels 4. I/O ports: Two Bit programmable I/O ports (Max. 16 pins) 5. Two Independent Timers  8-bit timer0 with divided by 1~256 pre-scale option, counter function, Stop counting  15-bit timer2 with 4 interrupt interval option Timer2 is used to idle mode wake-up timer or one simple 15-bit time base 6. 8-bit PWM0 with prescale/period-adjustment/buffer-reload/clear and hold function 7. 8-bit PWM1 is a simple fixed frequency and duty cycle variable PWM generator 8. One analog voltage comparator 9. Operation Voltage and Speed: VDD=1.5V, @6 MHz; VDD=1.1V, @SIRC Mode 10. PA1~PA6, PB1~PB6 individual pin low level wake up 11. Oscillation Sources  Fast Clock: - FXT (Fast Crystal): 1 MHz~24 MHz - FIRC (Fast Internal RC): 4/8 MHz - XRC (External R, External C): 10 KHz~3 MHz  Slow Clock: - SXT (Slow Crystal): 32768 Hz - XRC (External R, External C): 10 KHz~3 MHz - SIRC (Slow Internal RC): 151 KHz/37 KHz/9.4 KHz/2.4 KHz, @5V; 115 KHz/29 KHz/7.2 KHz/1.9 KHz, @3V 12. Power Saving Operation Mode  Fast Mode: Slow Clock can be disabled or enabled  Slow Mode: Fast Clock stops, CPU is running  Idle Mode: Slow Clock is running, CPU stops, Timer2 is running  Stop Mode: All Clocks stop, Wake-up Timer is disabled or enabled 13. Dual System Clock  FIRC + SIRC  FIRC + SXT  FIRC + XRC  FXT + SIRC  XRC + SIRC 14. Reset  Power On Reset  Watchdog Reset  Low Voltage Reset  External pin Reset 15. 2-Level Low Voltage Reset: 1.5V/2.3V (Can be disabled) 16. Operation Voltage: Low Voltage Reset Level to 5.5V 17. Interrupt  Three External Interrupt pins: - Two pins are falling edge triggered - One pin is rising or falling edge triggered  Timer0, Timer2, Wake-up Timer Interrupt  PWM0, CMP interrupt 18. Watchdog Timer  Clocked by built-in RC oscillator with 4 adjustable Reset/Interrupt Time (108 ms/56 ms/28 ms/14 ms, @5V; 138 ms/72 ms/36 ms/18 ms, @3V)  Watchdog timer can be disabled/enabled in STOP mode 19. I/O Ports  CMOS Output  Pseudo-Open-Drain or Open-Drain Output  Schmitt Trigger Input with/without pull-up resistor 20. Instruction set: 36 Instructions 21. Package Types: 14 DIP/SOP, 18 DIP/SOP
