全新進化TP6837體感操控功能數位雷射簡報筆!
2011/03/10
TP6837應用於專業級的簡報筆領域,其體感偵測功能經由手部動作;可迅速上下移動、切換螢幕畫面、輕易控制游
標;不須依靠鍵盤、滑鼠或操縱桿;就能直覺式感應操作光點、雷射筆、放大鏡、聚光燈等簡報輔助工具,操控動作
更是靈敏精準。加上五分鐘自動睡眠與任意鍵喚醒功能,使產品裝置更加省電環保,進化升級的控制功能讓人耳目一
新,簡報解說過程輕鬆簡易。

TP6837經由雙軸陀螺儀(Gyroscope)的特殊演算法及3軸加速度計(G-sensor)角度補償計算,優異的運算能力使信號
的轉換速度大增、訊號接收靈敏度增高,採用SPI通訊介面的高度相容性,透過內建電壓偵測腳位;穩定監控系統電
壓,提供數位訊號;增強抗雜訊功能,模組化的設計功能更加完善。十速科技優良的使用者介面;將完整提供客戶對
產品應用的需求。

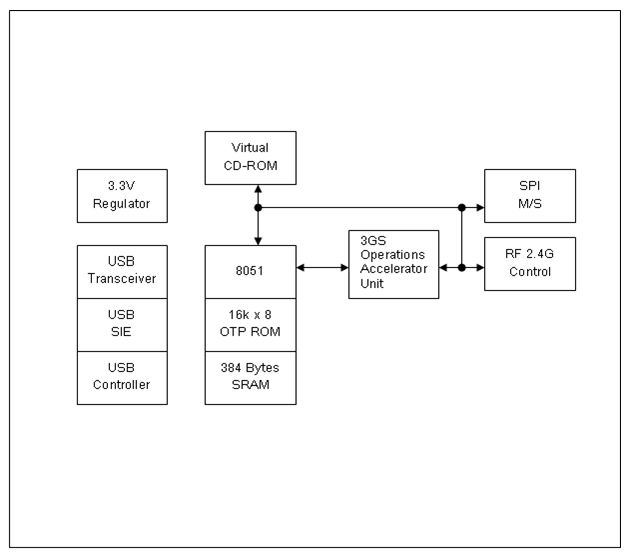

BLOCK DIAGRAM


FEATURES
*TP6837 USB Full Speed motion sensing Controller.
*Desk-off Mice
*2.4G Wireless transceiver.
*tenx Motion sensor technology.
*LED Indicators.



Circuit design
TP6837 wireless presenter device offers high performance and accurate sensor circuit.

1. Function Key Circuit
The TP6837 supports 5 function keys. All function keys are connected to the MCU GPIO.
The firmware will poll GPIO to get the key status.

2. PWM Output for LED Circuit
The LED indicators display the connection status. For example: frequency scanning,
connection strength, link quality and low battery. The MCU controls LED to light on/off
through the PWM Duty cycle.

3. OSC Circuit
The Pin FX1/FX2 is connected to a 24 MHz crystal. In Fast mode, the circuit provides
CPU clock and USB clock when TP6837 is plugged into a USB port. In Slow mode, the
external RC, connected to the RCOSC pin, provides clock to the MCU. In addition,
The TP6837 incorporates the wake up timer to trigger WUPINT per 0.5s. The wake up
timer clock source comes from the 32.768 KHz crystal, which is connected to LX1 and
LX2 pin.

4. Accelerometer Circuit (optional)
The three-axis accelerometer sensor is used to sense the momentum of hand motion
so that the MCU can transform the momentum data through SPI bus from the
accelerometer sensor. In addition, the decoupling capacitors (0.1 uF and 10 uF
capacitors) in circuit can adequately decouple the accelerometer from the power supply
noise.

5. RF module
The RF module is a 2.4 GHz RF transceiver. The TP6837 firmware can control the RF
 module to avoid other noise baseband. Two TP6837 Presenter devices can be
connected to one dongle at the same time, too.

6. Gyroscope Circuit
Power supply decoupling capacitors (100 nF and 10 μF ceramic) should be placed as
near as possible to the device (common design practice). The Gyroscope VDDA (pin 16)
 and VDDD (pin 15) lines should be kept separated to avoid switching noise coupling on
the analog side.
APPLICATION
-Mice
-Presenter Functions
-Remote Controls
-Virtual Reality
