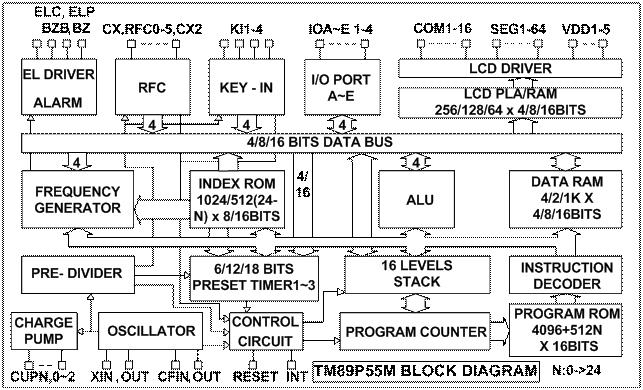

FEATURES1. Low power dissipation.
1.5V/3V operating voltage range.
2. Powerful instruction set.
Binary addition, subtraction, BCD adjustment. BCD can be executed directly in
addition, subtraction operation.
4 bits x 4 bits Multiplier
Single-bit manipulation (set, reset, decision for branch).
Various conditional branches.
16 initial working registers and manipulators (can be extended to all RAM by
Page Mode).
Table look-up.
LCD driver data transfer.
3. ROM capacity. 16K x 16 bits.
Instruction ROM Max. capacity 16K x 16 bits.
Table ROM Max. capacity 24K/12K x 8/16 bits.
4. RAM capacity. 4K/2K/1K x 4/8/16 bits.
LCD Max. capacity 256/128/64 x 4/8/16 bits.
STACK Max. capacity 16 x 16 bits.
HL/ZR store Max. capacity 16/16 x 16 bits.
5. With direct/index addressing mode in data RAM access.
6. LCD driver output.
Max 960 LCD dots by 16 common outputs and 60 segment outputs.
COM12~16 can be defined as SEG64~61 by option.
SEG41~60 can be defined as IOB1~4, KI1~4, ELC, ELP, BZB, BZ, IOD1~4,
IOC1~4 by option.
1/4~1/16 Duty can be selected by option.
1/3 ~1/5 Bias can be selected by option.
Single instruction to turn off all segments.
COM5~16 can be defined as CMOS or P_open drain type output by option.
External regulator mode for VL1/2 by option.
7. Input/output ports.
Port IOA 4 pins (with internal pull-low, input signal chattering prevention
circuitry), and can be defined as CX, RFC0~2 by option.
Port IOB 4 pins (with internal pull-low), and can be defined as SEG41~44 by
option.
Port IOC 4 pins (with internal pull-low, low-level-hold, input signal chattering
prevention circuitry), and can be defined as SEG57~60 by option.
Port IOD 4 pins (with internal pull-low, input signal chattering prevention
circuitry), and can be defined as SEG53~56 by option.
Port IOE 4 pins (with internal pull-low), and can be defined as RFC3~5,
CX2 by option.
8. Interrupt function.
External factors 5 (INT pin, Port IOA, IOC, IOD and KI input).
Internal factors 5 (Pre-Divider, Timer1, Timer2, Timer3 and RFC).
9. Built-in EL-light driver.
ELC, ELP (can be defined as SEG49, 50 by option).
10. Built-in Alarm, clock or single tone melody generator.
BZB, BZ (can be defined as SEG51, 52 by option).
11. Built-in resistance to frequency converter.
CX, RFC0~5, CX2 (can be defined as IOA1~4, IOE1~4 by option).
12. Built-in key matrix scanning function.
KO1~KO16 (shared with SEG1~16).
KI1~KI4 (can be defined as SEG45~48 by option).
13. Three 6-bit programmable timers with programmable clock source.
Read out the content in anytime.
Merged 2 or 3 timers as 12-bit or 18-bit timer.
Used as counter for RFC.
14. Watchdog timer.
15. Built-in voltage charge halver & pump circuit.
16. Dual clock operation
Slow clock oscillation can be defined as X’tal or external RC type oscillator
by option.
Fast clock oscillation can be defined as 3.58 MHz ceramic resonator, internal
R or external R type oscillator by option.
17. HALT function.
18. STOP function.
