USB 全速通用型IC (TMU3132)
2010/07/20
十速科技新推出TMU3132是USB 介面的8位元微處理器，是以精簡指令集運算、雙周期的微處理器應用於USB 2.0全速通用型產品，支持USB2.0 規範，主要的特點為4K14 MTP ROM可進行多次可程式燒錄，內置振盪頻率提供USB介面做資料傳輸介面，內置振盪頻率可提供千分之二點五誤差的48MHz頻率，以及可輸出12MHz 頻率提供無線2.4G模組使用。 TMU3132擁有USB介面DMA功能做為SPI與USB介面之間資料的傳輸，SPI介面支持模式0/1/2/3 MASTER，速率可調整到6Mbps。具待機模式與外部換醒功能、看門狗計時等功能。內含程式記憶體4K14 internal MTP ROM以及暫存記憶體RAM 160 Bytes在F-plane位置上 + RAM 128 Bytes 在R-plane位置上。新推出TMU3132 的產品是適合於USB 滑鼠與RF 2.4G無線裝置模組的應用上。

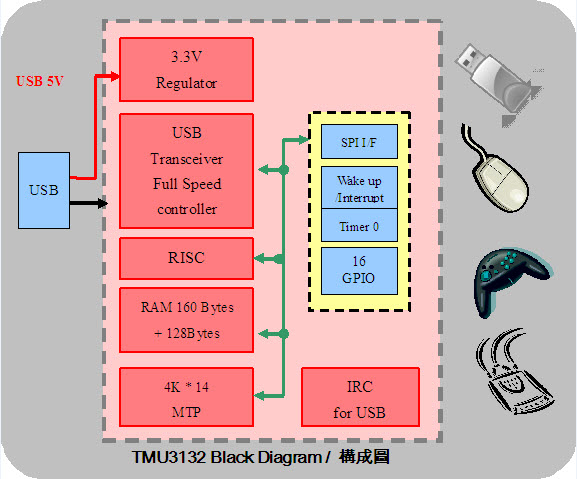

BLOCK DIAGRAM
FEATURES Operation Frequency  Internal RC oscillator 48MHz +/- 0.25% in USB (Without extra component) On-Chip Memory  4k x 14 internal MTP ROM size  Internal 160 Bytes RAM at F-plane and two 64Bytes RAM at R-plane USB interface  Compliance with the Universal Serial Bus specification v2.0 Full Speed  Built-in USB Transceiver, 3.3V regulator.  Support USB Suspend /Resume and Remote Wakeup function  Endpoint 0: Control SETUP/IN/OUT transfer (each 8 bytes)  Endpoint 1: INTERRUPT IN transfer (8 bytes)  Endpoint 2: INTERRUPT IN transfer (8 bytes)  Endpoint 3: BULK-IN transfer with Ping-Pong feature (264 bytes)  Endpoint 4: BULK-OUT transfer with Ping-Pong feature (264 bytes) Timer  Timer0 is 8-bit with 8-bit prescaler, Counter/Reload/Interrupt function  Watchdog Timer clocked by built-in RC oscillator  Wakeup Timer clocked by built-in RC oscillator Reset Controller  Power On Reset, Watch-Dog Timer SPI interface  Support Mode0, 1, 2, 3  Master only  Clock rate up to 6Mbps.  Read/Write DMA mode I/O Ports  Max. 16 GPIOs to flexible application SOP20 / Die Form
APPLICATION USB mouse with Virtual CD-ROM auto-run function  USB dongle with RF 2.4G module for wireless application
