Tenx launched TM56F1552 for small signal amplification, touch panel needs and other applications. It integrates OPA and CMP for signal
detection and amplification. With touch module, it can be widely used in small signal amplification, touch panel needs products,
such as electric ceramic furnace, Wireless charging, touch panel, etc.

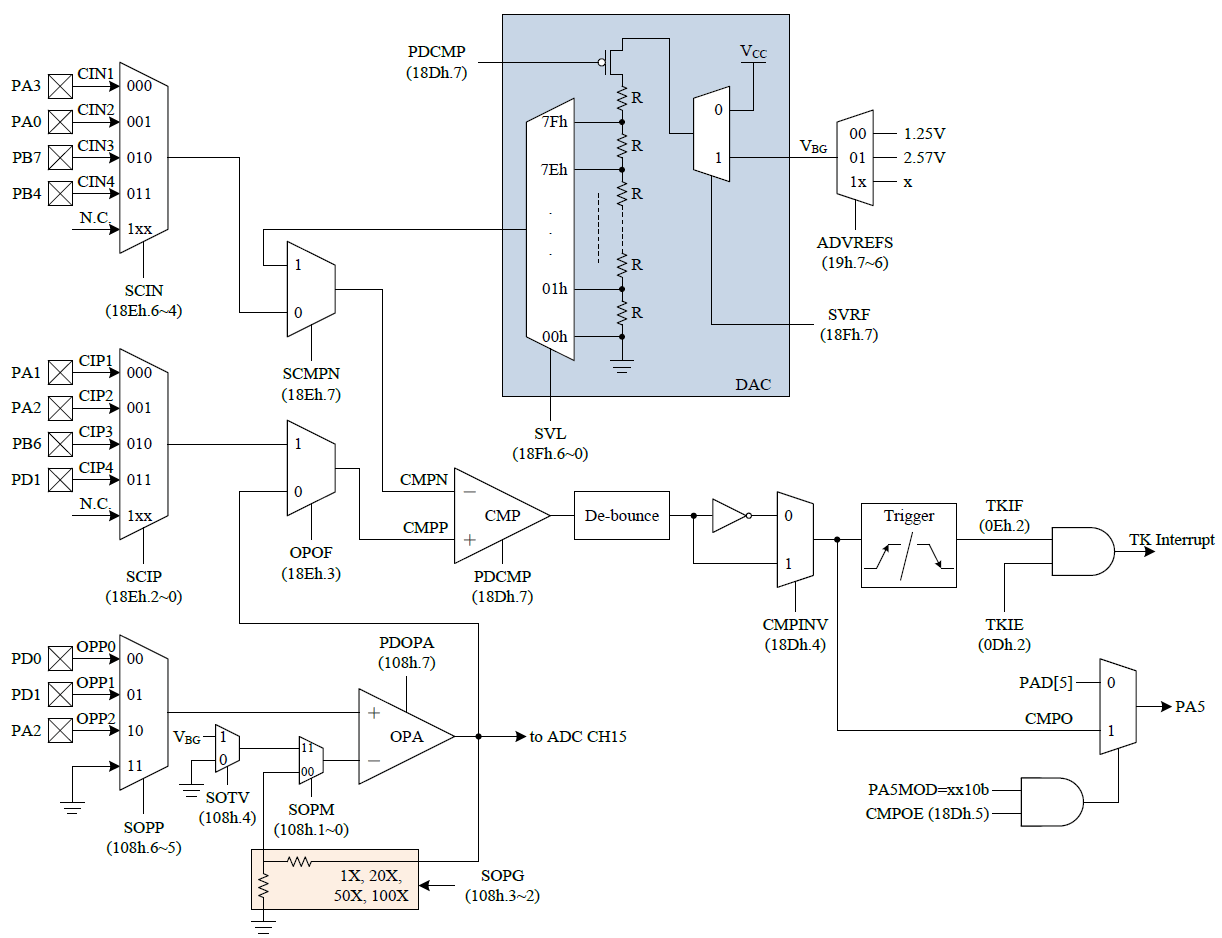

TM56F1552 has built-in low noise OPA, CMP, LDO, CTK, which can reduce the number of product parts and reduce cost.

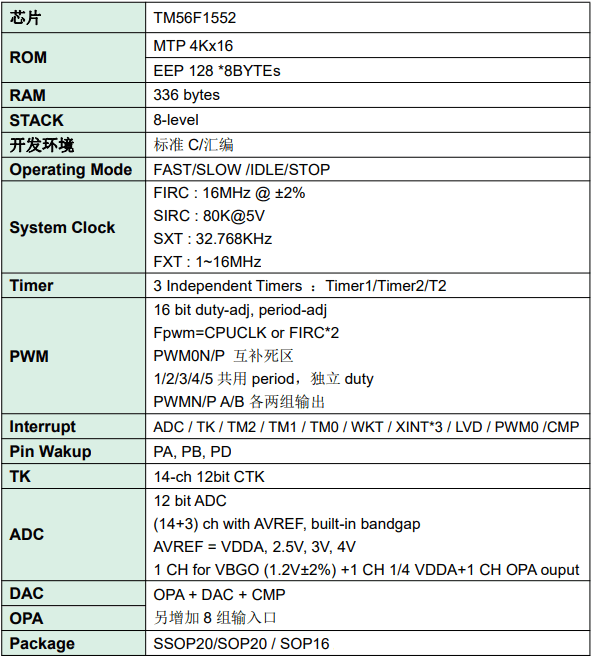

In terms of resources: 4Kx16 FLASH Program memory, 336x8 RAM, 128x8 EEPROM, 12BIT ADC (14+3) ch,
16BIT PWM and 3Independent Timers.
